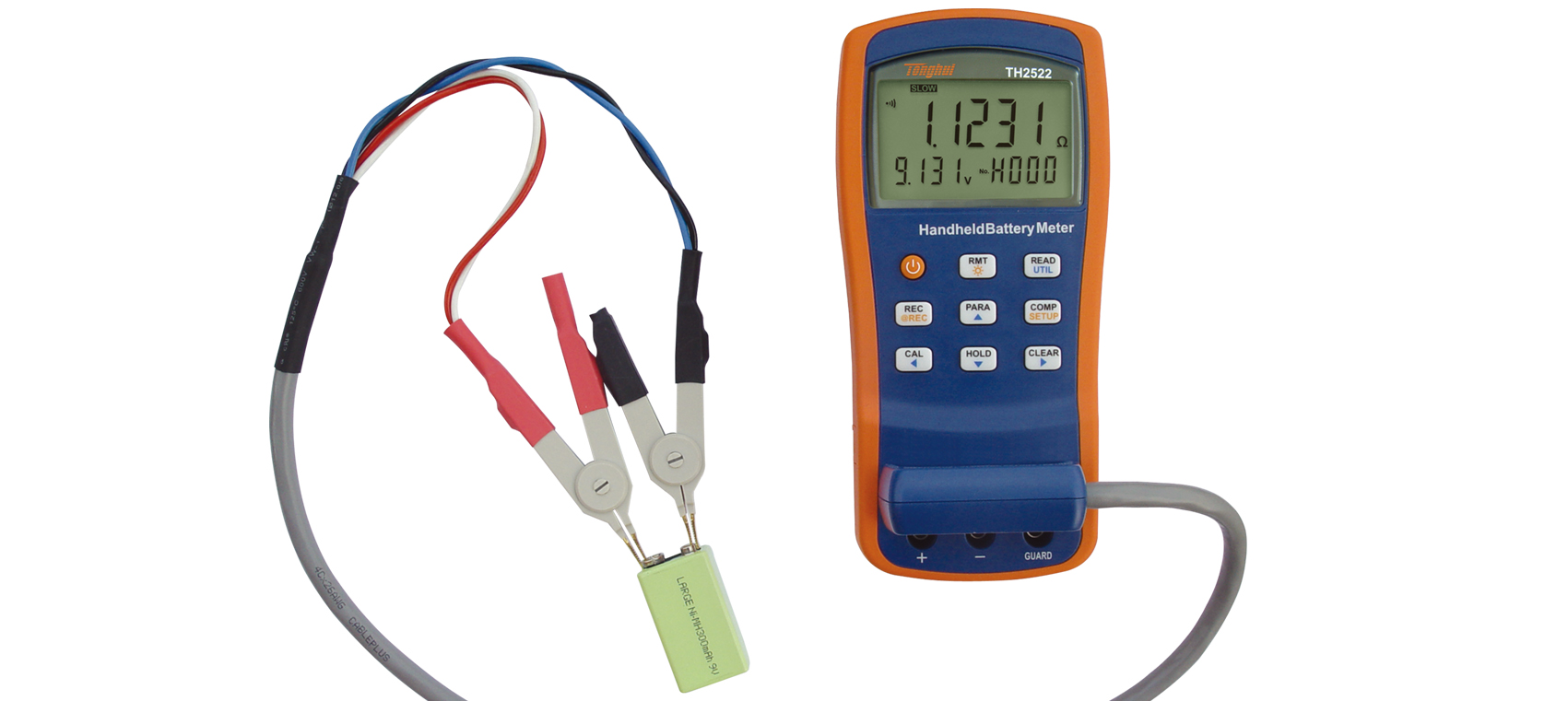

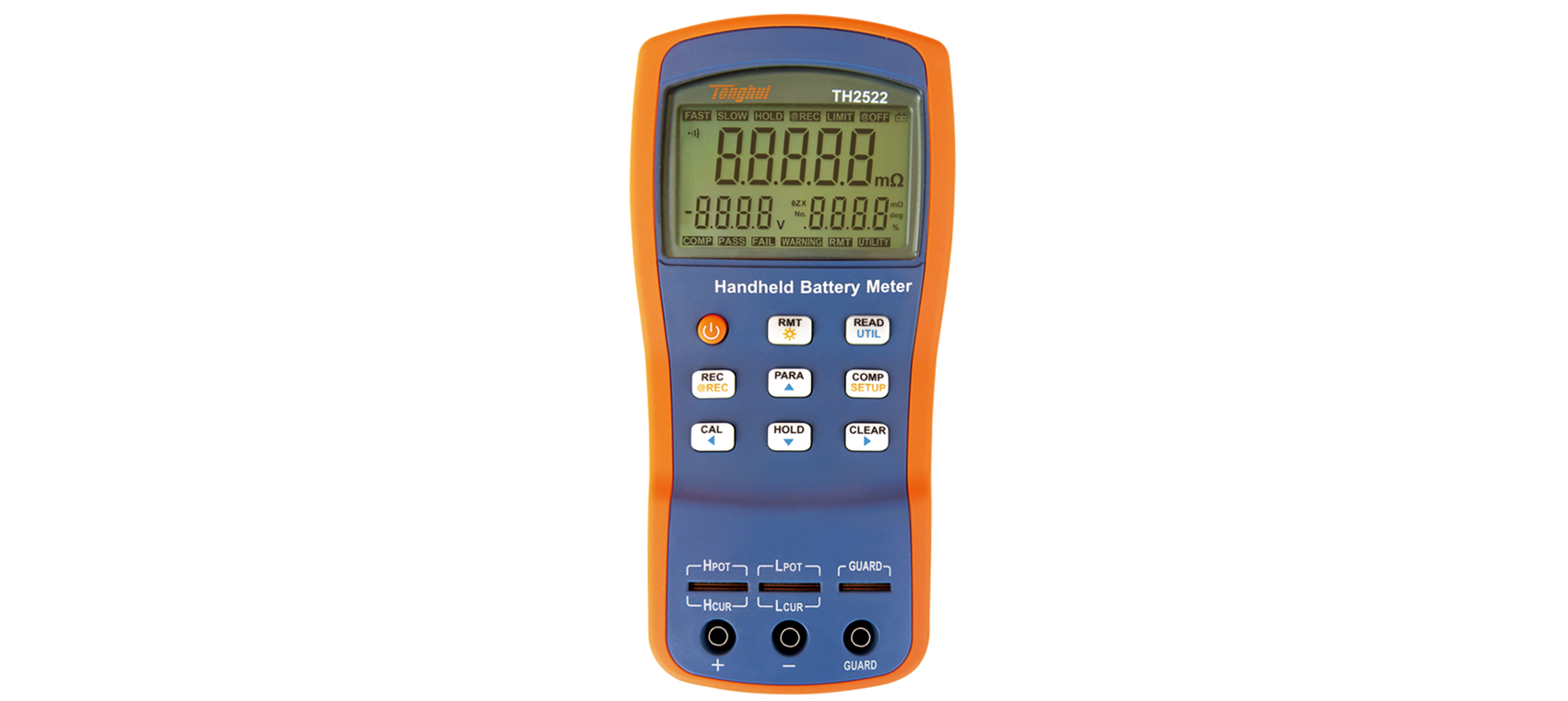

TH2522 handheld AC low resistance instrument

Model:TH2522

Brand:同惠电子1

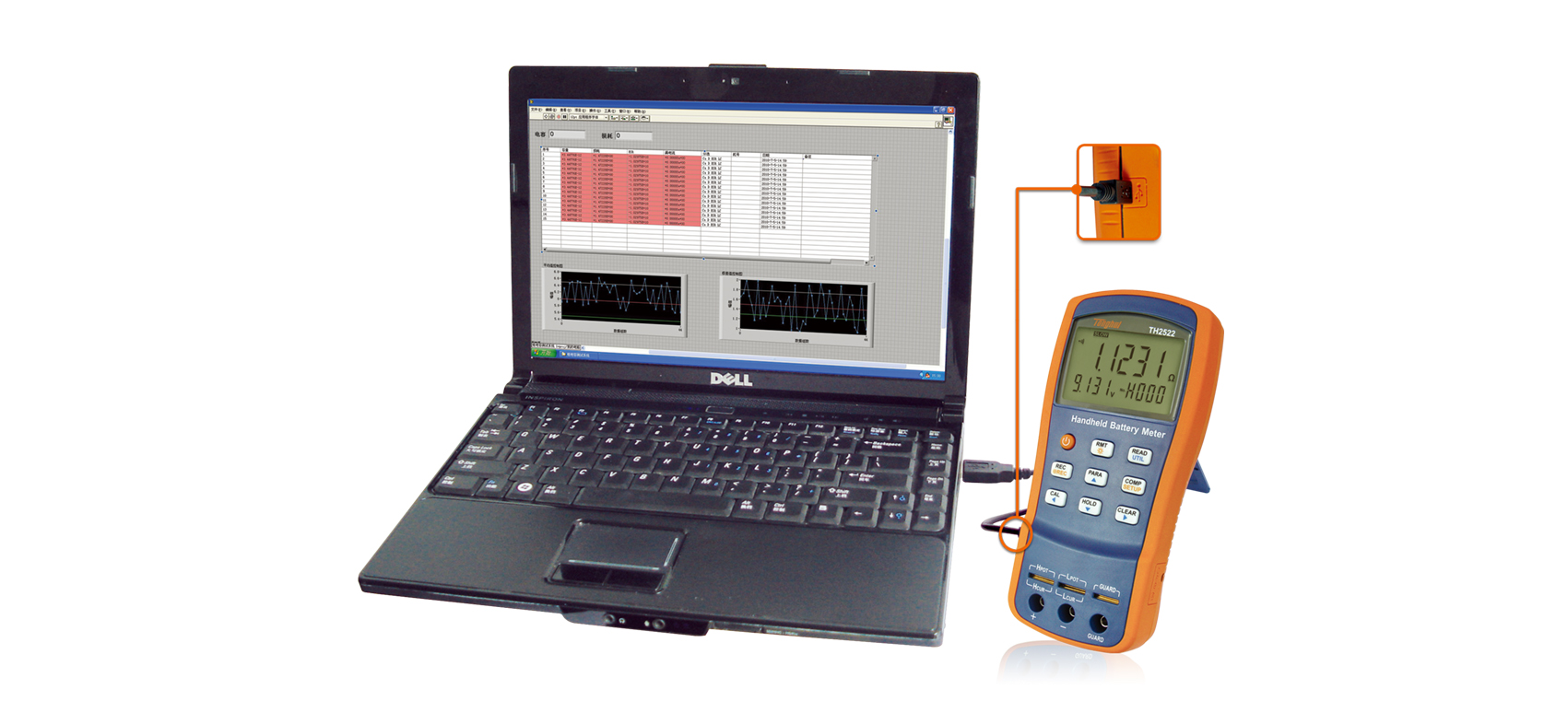

Introduction:■ Tonghui Electronics with its deep technical accumulation in the field of impedance testing and extensive market research, launched the portable AC resistance voltage testing instrument ----TH2522 series handheld battery tester (battery internal resistance/voltage tester). The TH2522 series handheld battery tester uses a 16bits embedded CPU with low power consumption and a high-density SMD mounting technology for a clean interface and easy operation. TH2522 uses 1kHz constant voltage test signal source, internal resistance of 50Ω, can be well adapted to the external measurement devices, prevent the measured parts destroyed. In addition to the minimum range of resistance, its range can reach 0.5percent accuracy (minimum range guarantee 0.8percent accuracy), DC voltage measurement accuracy is up to 0.1percent. The TH2522 can store 35 groups of sorting data internally, which can be independently set and selected with built-in comparison data, making your testing and data analysis processing work easier. Two kinds of data storage methods can be realized inside, manual up to 100 sets of data, automatic up to 500 sets of data, automatic storage is divided into stable storage and fixed interval storage, convenient for you to draw product performance parameter table by measuring data TH2522 instrument is configured with Mini-USB interface, which is convenient for you to read the data saved by the instrument. And convenient for you to remote control the instrument, so that the test work is no longer boring.
