Your Position:Home > Products Center > 同惠电子1 > TL5802 Passive Leakage Current Tester

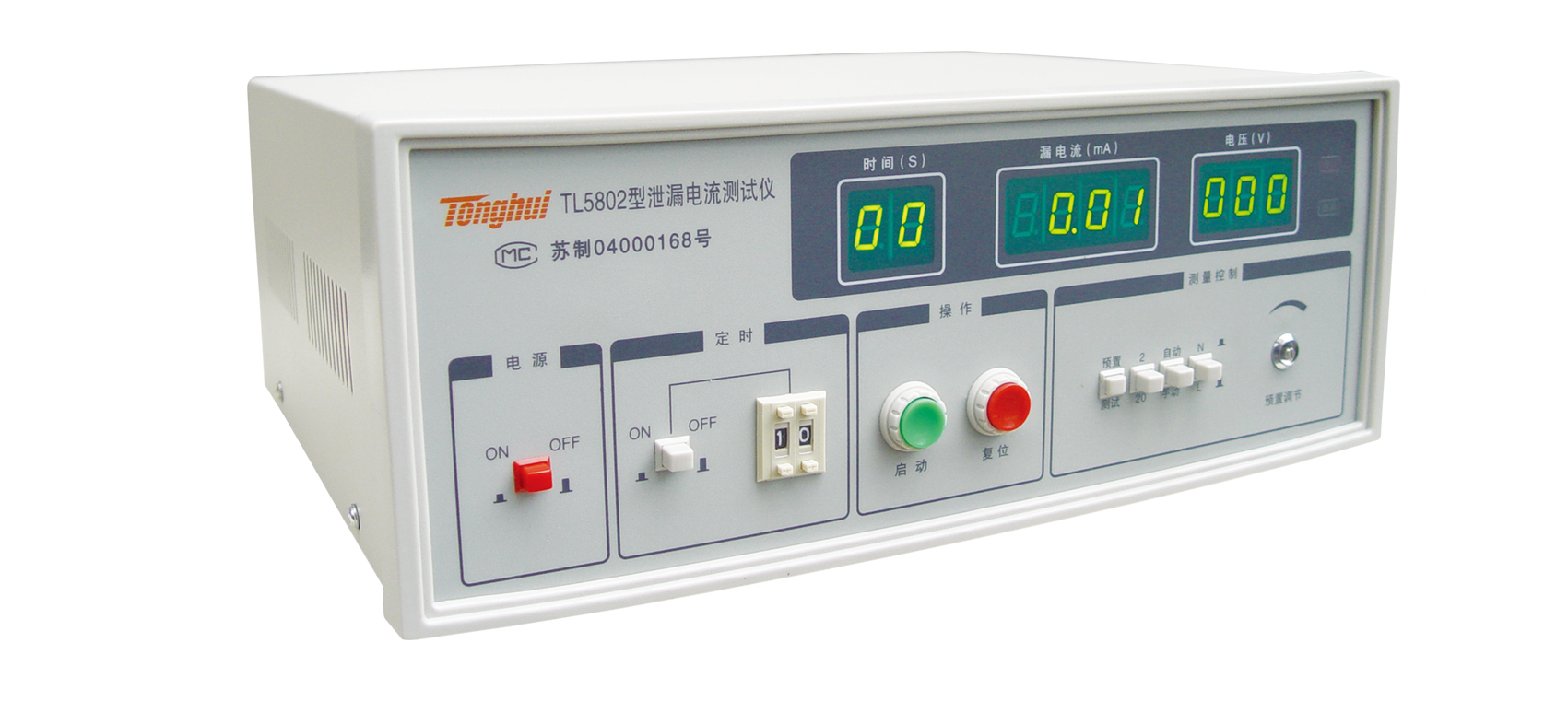

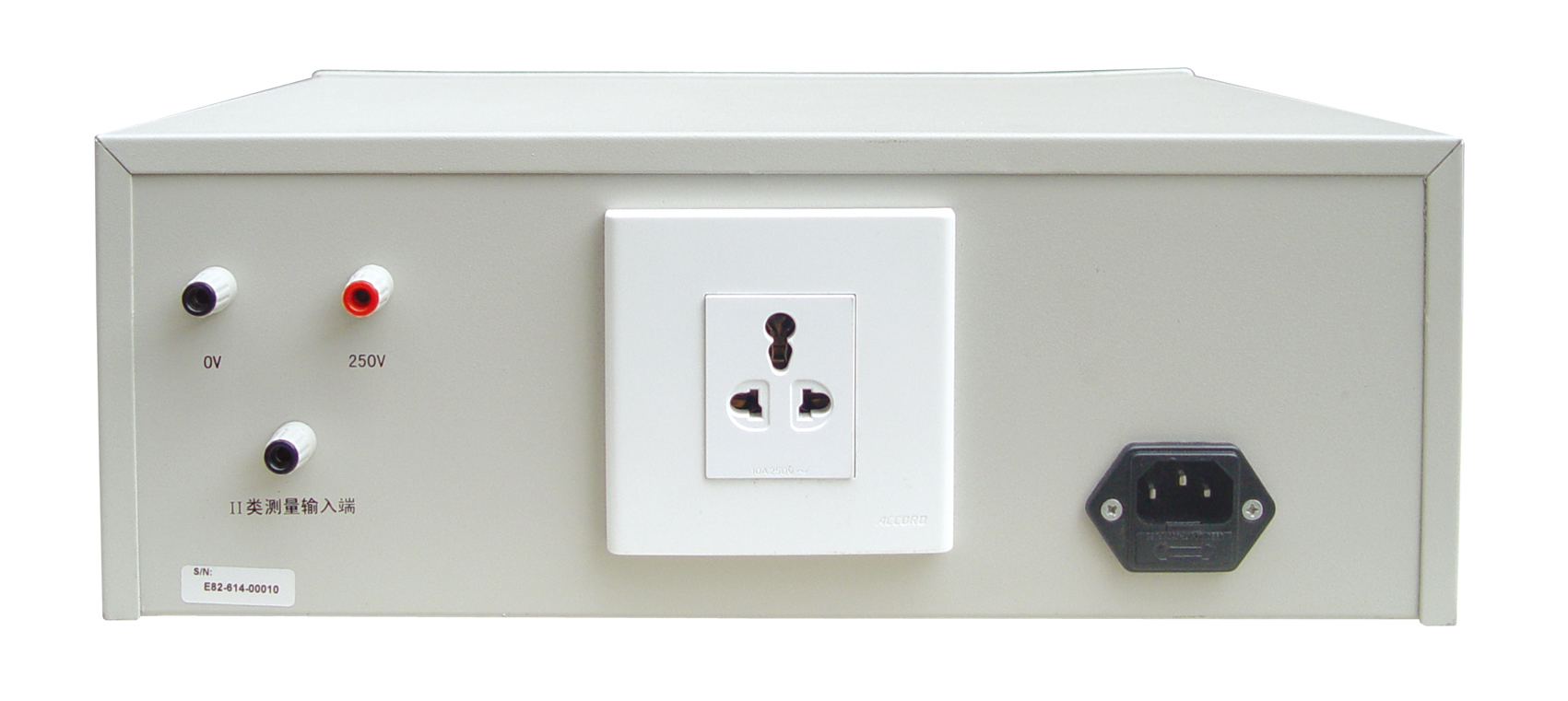

  • TL5802 Passive Leakage Current Tester

    Model:TL5802

    Brand:同惠电子1

    Introduction:■ TL5802 Leakage current tester is used to measure the working power supply (or other power supply) of electrical appliances through insulation impedance or distributed parameter impedance generated unrelated to the leakage current. Its input impedance simulates human body impedance, product use and household appliances and motors, electronic instruments and other electrical products safety testing requirements, is also the laboratory, measurement supervision department indispensable testing equipment. This product meets GB4706.1-2005, IEC60335.1-2004 and other domestic and foreign safety standard tests, and meets the requirements of JJG843-2007 safety metrology verification regulation.

    • Technical parameters

    • Model number

      TL5802

      TL5802S( Three phases)

      Transformer capacity

      External voltage regulator type

      External voltage regulator type

      Size (mm)

      350x135x280

      350x135x280

      Output voltage

      0-250V

      Leakage current range

      0-2/20mA

      Test time

      1-99S

      Accuracy

      ±(5%+5counts)

      Temperature/humidity

      0 ℃-40℃/≤75%RH

    • Attachment

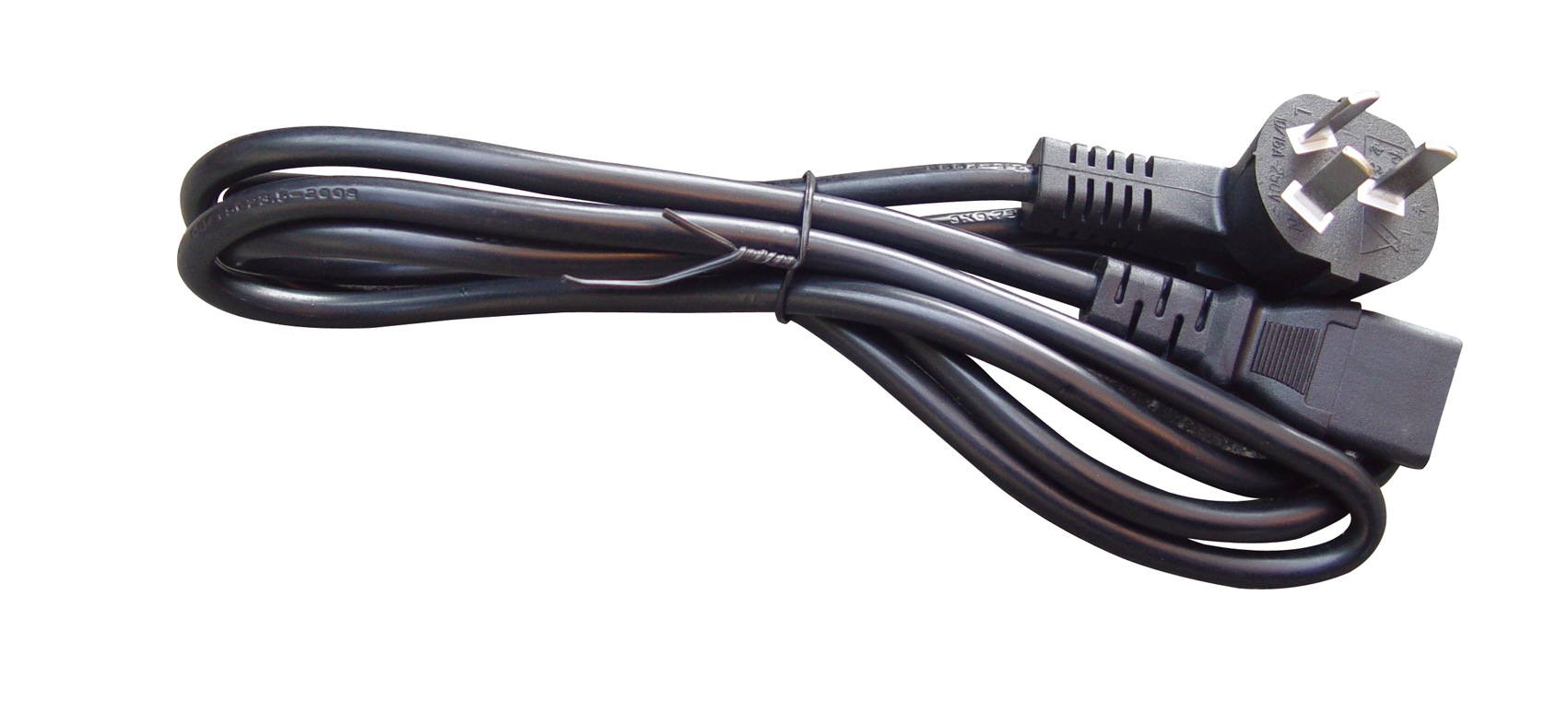

    • Standard configuration
      Part name Model number



      Optional
      Part name Model number
