Product Description:

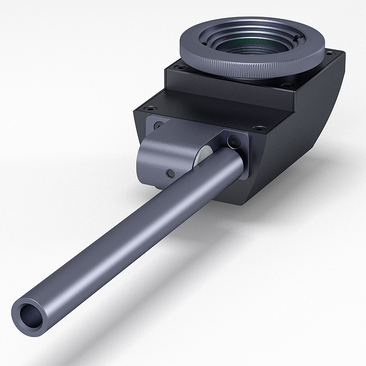

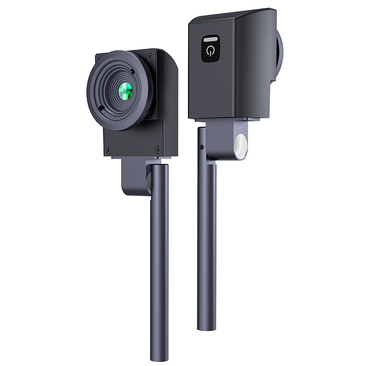

The ST9660A PCBA thermal analyzer produced by our company is a special equipment for thermal field detection, which can provide a large number of thermal experiments and simulation data for the design and development of PCBA products. At the same time, it is a special equipment for circuit board maintenance, when the product failure, such as circuit leakage or short-circuit circuit board, there will be abnormal temperature rise, the use of thermal analyzer, can reflect the abnormal temperature rise, you can quickly find the leakage, short-circuit device location, locate the fault point, to achieve the purpose of rapid maintenance. In addition, can also detect components, such as power module and other devices, in the detection of overheating protection ability and other applications, you can get a large number of temperature detection data through the thermal analyzer
Technical parameters :
Thermal imaging resolution |
260*200 |
Frame rate |
25Hz |
NETD |
70mK@25℃ |
Field Angle |
Horizontal 34.4, vertical 25.8 |
Field Angle |
28.4°x21.4° |
The lens |
4mm可调焦The lens |
Temperature measuring range |
Check temperature -10 ~ 120℃ (can be extended to 550℃,
|
Temperature measurement accuracy |
±5℃ or ±5percent |
Power supply |
DC 5V(USBType-C) |
| Power switch | Press 1 second to turn on,3 seconds to turn off |
Connection mode |
USB cable connected to the computer to use |
Temperature measurement range |
-25℃~550℃（-13℉~1022℉） |
ce the table |
Host one piece, (optional expansion board 1 piece, can be detachable and combined
|
Adjusting knob |
4个Adjusting knob,上下距离快速调节,The lens
|
Table size |
Single table te: 220mmx172mm, height 241mm; Combined double table te: 346mmx260mm, Height: extension Support rod 341mm |
Package size |
Package size包装：376mmx280mmx105mm |
Weight of the machine |
Standard configuration: 1.1kg (optional: 0.5kg) |
Operating temperature |
Operating temperature-10℃～55℃ |
Operating humidity |
<95% |
System requirements |
Win10(recommended) win7 |
| Computer requirements | I3 + processor,4G + memory |
Update the requirements |
Can connect to the internet for manual or automatic update |
