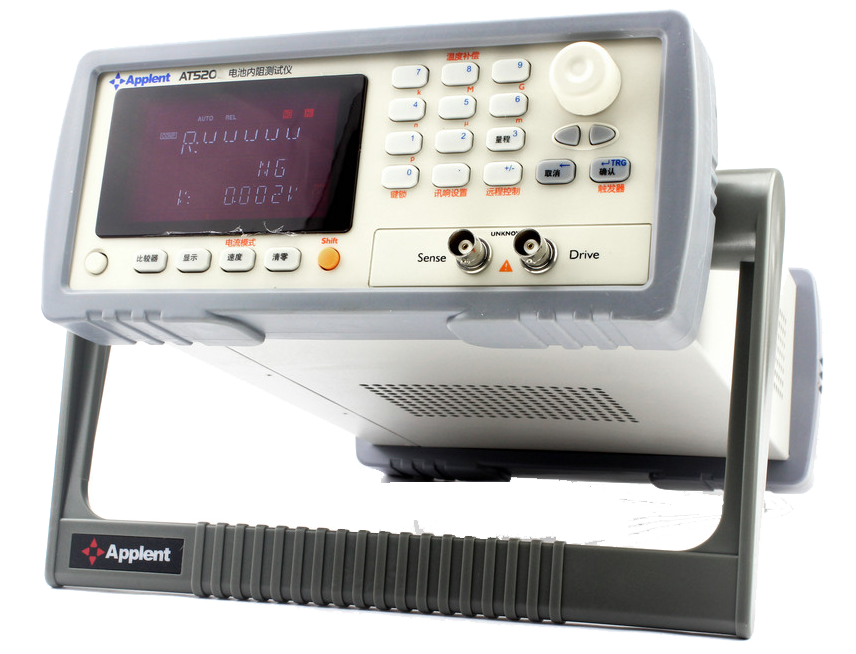

Characteristic
Dual disy: the internal resistance and voltage of the battery are disyed simultaneously
1kHz AC low current test
Four-terminal test
The alarm rings
Specifications
| Test parameters | Ac resistance, DC voltage |
| Basic accuracy | Resistance: 0.5percent Voltage: 0.05percent |
| Measuring range | 电阻Measuring range：1μΩ ～ 3kΩ. 电压Measuring range：100μV～60V |
| Signal source | Ac 1kHz, open circuit voltage < 20mV, test current: < 10mA |
| 量程 | Six range automatic and manual |
| Test the speed | 20 times per second,6 times per second,1 time per second |
| Show the result | Direct reading, ΔABS,Δpercent,θ, sorting results |
| Maximum reading | Resistance: 32,000 Voltage: 60,000 |
| Correction | Full range short circuit clearing, REL relative value function |
| Comparator | 30 groups of record, disy and output NG-LO, GD-IN, NG-HI adjustable ring |
| Trigger | Internal trigger, manual trigger and external trigger |
| Interface | RS-232C Interface |
| Optional accessories | ATL506A Test probe |
| Power requirements | Voltage: 198VAC ~ 240VAC Frequency: 50Hz Power: MAX 15VA |
| Size | 外Size（mm）：264 (宽)x107(高)x350 (深) |
| The weight of | 4kg |
| Attachment | ATL505 Kelvin clip,ATL801 RS232C Communication cable |
Apply
For pipelined testing, thin provisioning
The low resistance characteristics of electromechanical components are characterized under the condition of low current
Test of various contact resistances
Alkaline batteries, determination of deterioration and life assessment of lead batteries
UPS online detection
Battery delivery inspection
Ultracapacitor equivalent resistance (ESR) measurement
