Characteristic
Using vector method measurement, a variety of parameters at the same time measurement .
Comparator (sorting) function
Test line damage detection.
Compatible with SCPI instruction sets.
A new and improved sampling circuit
Specifications
| Test parameters | Ac resistance, DC voltage |
| Basic accuracy | Resistance: 0.5percent Voltage: 0.01percent |
| Measuring range | Resistance: 0.001mΩ~33.000kΩ Voltage: 0.00001V~120.000VDC |
| Signal source | Ac 1kHz, test current: < 150mA |
| 量程 | Seven range automatic and manual |
| Test the speed | 30 times per second,10 times per second,1 time per second |
| Show the result | Direct reading,ΔABS,Δpercent,θ, sorting results |
| Maximum reading | Resistance: 33,000 Voltage: 1,200,000 |
| Correction | Short-circuit clearance in full range |
| Comparator | Optional 18 archives sorting RHI/RNG/RLO output VHI/VNG/VLO output absolute tolerance + / - TOL separation percentage tolerance TOL sorting sequence comparison sorting |
| Trigger | Internal trigger, manual trigger, external trigger and remote trigger |
| Line break detection function | Broken line detection and open circuit detection |

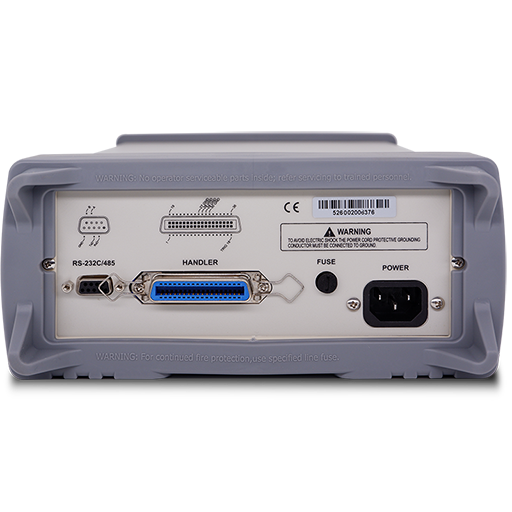

| Interface | RS-232C Interface HandlerInterface（PLCInterface） |
| Optional accessories | ATL609 Test Fixture |
| Power requirements | Voltage: 195VAC ~ 245VAC frequency: 50Hz Power: 15VA |
| Size | 外Size（mm）：264 (宽)x107(高)x350 (深) |
| The weight of | 4kg |
| Attachment | ATL502开尔文测试线、 ATL108 RS232Interface电缆,ATL502A 测试探针 |
| Other functions | Test line damage detection True color TFT-LCD disy, keyboard lock and data hold features internal flash and USB flash drive data logging |
Apply
Test of various contact resistances
Alkaline battery, lead battery, lithium battery deterioration determination and life assessment
UPS online detection
Battery delivery inspection
Ultracapacitor equivalent resistance (ESR) measurement
