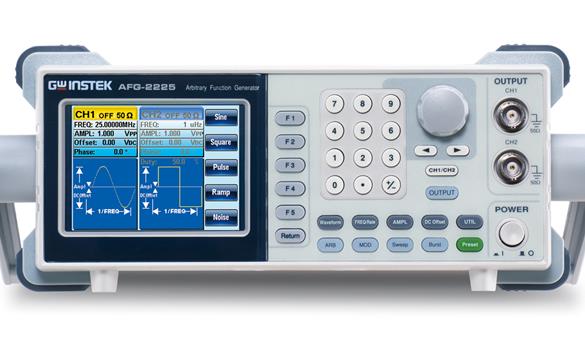

AFG-2225

Model:AFG-2225

Brand:固纬Gwinstek

Introduction:Wide frequency range 1 μHz-25 MHZ (sine wave) full frequency band 1μHz resolution built-in independent performance dual channel standard 120MSa/s, 10bit, 4k point arbitrary wave real dual channel output, CH2 provides signal output with channel specifications dual channel functions support coupling, tracking, phase operation 1%-99percent square wave adjustable duty cycle friendly user interface, Convenient for the user to set parameters to provide a variety of arbitrary wave editor signal function Built-in standard of AM/FM/PM/FSK/SUM/Sweep/Burst and frequency, provides USB Host/Device interface for remote control and the waveform editor
