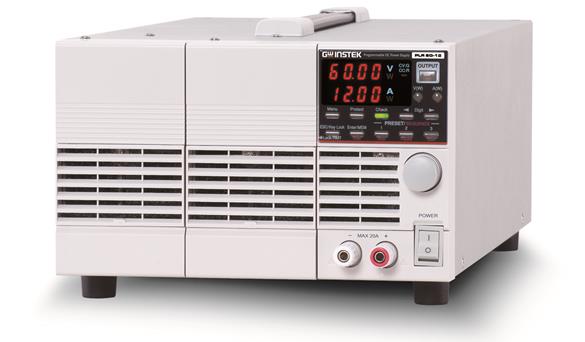

Model:PLR系列（开关式）(PLR 20-18,PLR 20-36,PLR 36-10,PLR 36-20,PLR 60-6,PLR 60-12)

Brand:固纬Gwinstek

Introduction:Rated output voltage :20V/36V/60V Output power :360W/720W Low ripple low noise (0.5mVrms/10mArms) Fast recovery time (100us) AC inputs for 100-240VAC are equipped with power factor correction circuits Serial connection up to 2 units Parallel connection up to 3 units Select voltage current set digit (coarse adjustment/fine adjustment) Panel lock function /3 sets of preset function Output timer function (range from 1min to 1000h59mins) CC priority function (prevent current conflict) PC editing sequence function (maximum step 1000 / minimum step 50ms) protection: OVP,UVP,OCP, remote sensing (terminal open) external simulation control function PC remote interface: standard: RS-232 Optional: GPIB, USB, and LAN
