Characteristic
33,000 AC resistance readings,1000,00 DC voltage readings
Resistance test range: 0.0001mΩ~3kΩ
Voltage test range: 0.00001V to 1500.00VDC
0.5percent resistance accuracy
0.01percent voltage accuracy
HANDLER interface
RS-232C and USB communication interface
U disk real-time storage full touch operation
规格
| Test parameters | Ac resistance, DC voltage |
| Basic accuracy | Resistance accuracy 0.5percent, voltage accuracy 0.01percent |
| Measuring range | Resistance test range: 0.0001mΩ~3kΩ 电压测试范围：0.00001~1500.00V |
| Signal source | 1kHz, frequency stability: 20ppm |
| 量程 | Use 7 range test,3mΩ~3kΩ. Range automatic, manual and nominal. Range designation: The instrument will automatically select the range according to the nominal value |
| Test the speed | The instrument has four speeds: slow, medium, fast and high. Full channel open, and manual range mode: slow: 3 times/second medium speed: 20 times/second Fast: 40 times/second high speed: 70 times/second |
| Show the result | Direct reading,ΔABS,Δpercent,θ, sorting results |
| Maximum reading | Resistance: 33,000 Voltage: 800,000 |
| Correction | Short-circuit clearance in full range |
| Comparator | The instrument has sorting function. RHI/RNG/RLO Output. VHI/VNG/VLO output. Total NG/OK output comparison mode: absolute tolerance ±TOL Sorting: The absolute deviation between the measured value and the nominal value is compared with the limit of each gear. percentTOL Sorting: Percent-deviation of a measured value from a nominal value is compared with the range limits. Sequential comparison sorting: The measured value is directly compared with the upper and lower limits |
| Trigger | Internal trigger, manual trigger, external trigger and remote trigger |
| Line break detection function | Broken line detection and open circuit detection |

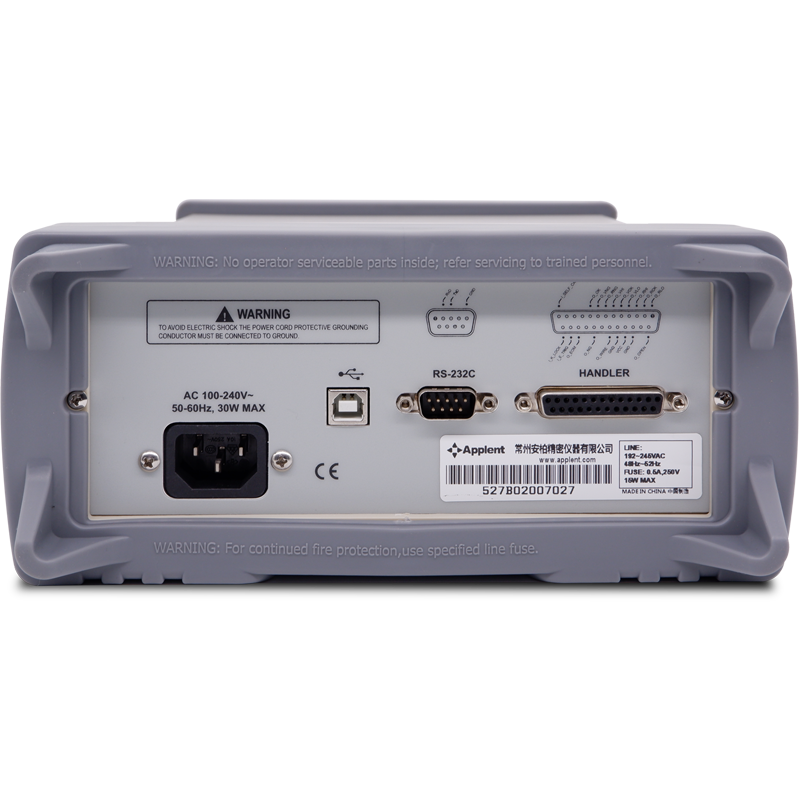

| Interface | HANDLERInterface RS-232CInterface USB 通讯Interface |
| Optional accessories | ATL527A |
| Power requirements | Voltage: 195VAC ~ 245VAC frequency: 50Hz Power: 15VA |
| Size | 外Size（mm）：264 (宽)x107(高)x350 (深) |
| The weight of | 4kg |
| Attachment | ATL527开尔文测试线,ATL108 RS232Interface电缆 |
| Other functions | 4.3 "TFT-LCD true color disy, full touch operation |
Apply
Energy storage solutions
Test of various contact resistances
Alkaline battery, lead battery, lithium battery deterioration determination and life assessment
Battery delivery inspection
Ultracapacitor equivalent resistance (ESR) measurement
