Characteristic
Using vector method measurement, a variety of parameters at the same time measurement .
Comparator (sorting) function
Test line damage detection.
Compatible with SCPI instruction sets.
全新改进的采样电路
规格
| Test parameters | 20 AC resistance,20 DC voltage |
| Basic accuracy | Resistance: 0.5percent Voltage: 0.05percent |
| Measuring range | Resistance: 0.01mΩ~33.000Ω Voltage: 0.00001V~60.000VDC |
| Signal source | Ac 1kHz, test current: < 150mA |
| 量程 | Three range automatic and manual |
| Test the speed | Fast 10 ways /1 second, medium 10 ways /2 seconds, slow 10 ways /3 seconds |
| Show the result | Direct reading,ΔABS,Δpercent,θ, sorting results |
| MAX reading | Resistance: 30000 Voltage: 60,000 |
| Correction | Short-circuit clearance in full range |
| Comparator | RHI/RNG/RLO output VHI/VNG/VLO output absolute tolerance + / - TOL separation percentage tolerance TOL sorting sequence comparison sorting |
| Trigger | Internal trigger, manual trigger, external trigger and remote trigger |

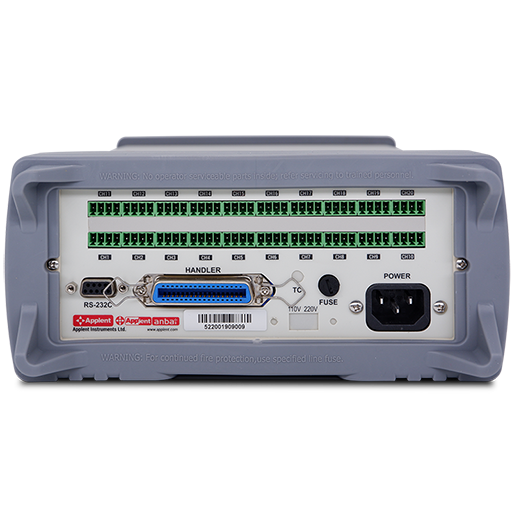

| Interface | RS-232C Interface HandlerInterface（PLCInterface） |
| Power requirements | Voltage: 195VAC ~ 245VAC frequency: 50Hz Power: 15VA |
| Size and weight | External dimension (mm) : 264 (W)x107(H)x350 (D) Weight: 4kg |
| Attachment | ATL503DZ2有夹 1副、ATL503DZ2无夹20副 ATL108 RS232Interface电缆 |
| Other | True color TFT-LCD disys, keyboard locks and data retention features internal flash and USB flash drives for data logging |
Apply
Test of various contact resistances
Alkaline battery, lead battery, lithium battery deterioration determination and life assessment
UPS online detection
