Characteristic

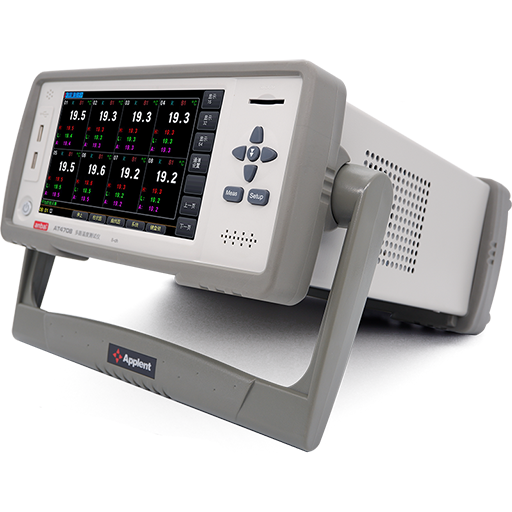

7 "TFT true color LCD
The bar chart shows that
High value, low value, average value shows
Cold end compensation
The standard USB disk port supports mass storage devices
Standard RS232C interface and USB interface
Automatic coupling detection
Specify channel scan
Standard data acquisition software
规格
| Dividing sign | Thermocouple: J/K/T/E/S/N/B/R type |
| Basic accuracy | Type K thermocouple
-100℃~ 0℃±1.2℃ 0℃ to 1350℃ ±0.8℃ (Dividing sign不同略有差异,具体可查阅用户手册) |
| Test range | -200℃~1800℃（Test range因Dividing sign不同而有差异） |
| Resolution | 0.1℃ |
| Number of channels | 8 way; |
| Scanning speed | Scan all channels in 1 second |
| Correction | Per channel error correction |
| Comparator | Each channel separately sets the upper and lower super values |
| Standard interface | RS232C port USB flash drive port USB communication port |
| Standard software | Data acquisition software |
| Cold end compensation | Accuracy: 0.5℃ |
| Other | TFT-LCD true color liquid crystal disy, broken couple detection function |
| Power requirements | Voltage: 85VAC ~ 260VAC Frequency: 50Hz/60Hz Power: 10VA |
| Size and weight | 216(W)x88(H)x300(D) Weight: 3kg |
| Attachment | K型热电偶8支（2米/支） Data acquisition software光盘 |
Apply
Applicable to household appliances, motors, electric heating appliances, temperature controllers, transformers, ovens, heat protectors, power supply, lighting, electric power,LED and other industries of manufacturers and quality inspection departments on the multi-point temperature test
