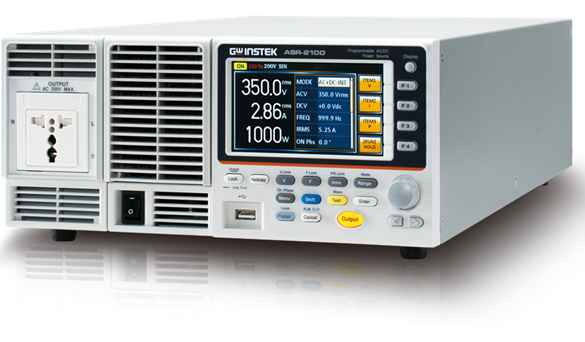

ASR-2000 series (ASR-2050, ASR-2050R, ASR-2100, ASR-2100R)

Model:ASR-2050,ASR-2050R,ASR-2100,ASR-2100R

Brand:固纬Gwinstek

Introduction:Rated output: AC 0 ~ 350 Vrms, DC 0 ~ ± 500V output frequency up to 999.9Hz DC output (100percent rated power) Output capacity: 500VA/1000VA Measurement Items: Vrms, Vavg, Vpeak,Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF Voltage and current Harmonic analysis (THDv, THDi) Output on/off of the custom phase Angle remote sensing capability OVP, OCP, OPP, OTP AC fault detection and fan fault alarm interface: USB,LAN(standard) RS-232 GPIB(Optional) Built-in external control I/O and external signal input Built-in output relay Control storage function (up to 10 groups) Sequence and analog function (up to 10 groups) Support for arbitrary waveform function Built-in Web server
