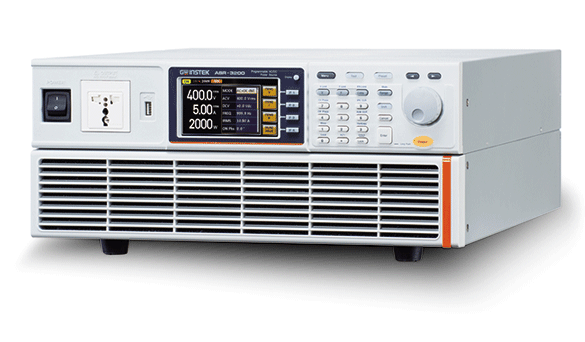

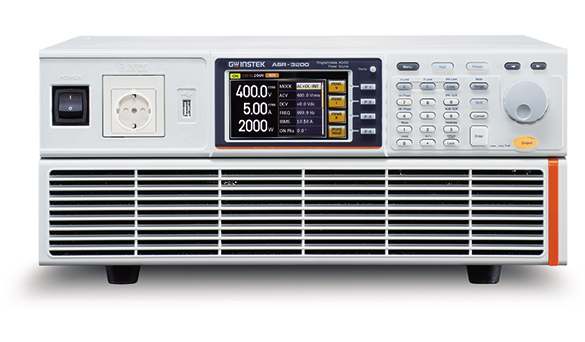

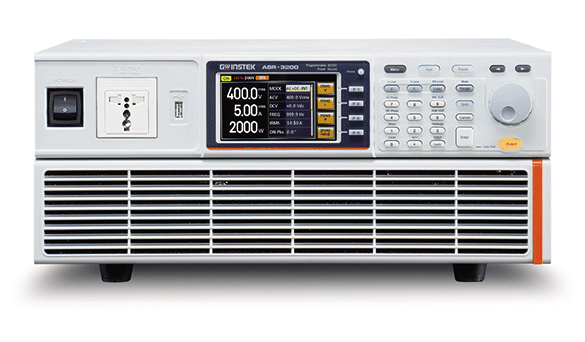

ASR-3000 series (ASR-3200, ASR-3300, ASR-3400, ASR-3400HF)

Model:ASR-3200，ASR-3300,ASR-3400,ASR-3400HF

Brand:固纬Gwinstek

Introduction:Rated output: AC 0~400Vrms, DC 0~±570V output frequency up to 999.9Hz/5KHz(ASR-3400HF) DC output (100percent rated power) Output capacity: 2000VA/3000VA/4000VA Measurement Items: Vrms, Vavg, Vpeak,Irms, IpkH, lavg, Ipeak, P, S, Q, PF, CF Voltage current harmonic analysis (THDv, THDi) Output on/off of the custom phase Angle remote compensation function OVP, OCP, OPP, OTP AC anomaly detection and fan fault alarm interface: USB, LAN, RS-232C, GPIB sequence and simulation function (up to 10 groups) support arbitrary waveform function and built-in Web server
