| 输入规格(AC rms) |
|
|
||||

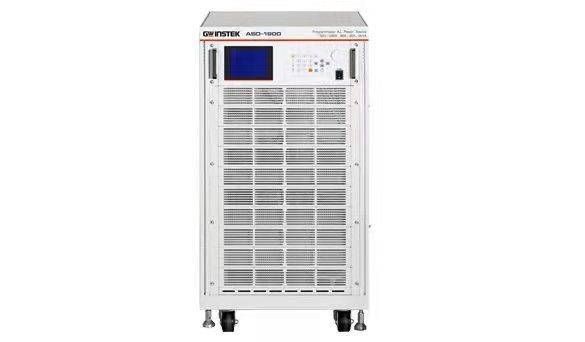

| Model number | ASD-1150 | ASD-1300 | ASD-1600 | ASD-1900 | ||
| Conventional input voltage | 100 Vac to 240 Vac (single-phase) | 220 Vac to 240 Vac (single-phase) | 220 Vac to 240 Vac (L-L)
3 phase 4 line Delta connection 380 Vac to 400 Vac (L-L) 3 phase 5 line Y connection |
220 Vac to 240 Vac (L-L)
3 phase 4 line Delta connection 380 Vac to 400 Vac (L-L) 3 phase 5 line Y connection |
||
| Input voltage range | 90 Vac to 254 Vac | 190 Vac to 254 Vac | 190 Vac to 250 Vac (L-L)
3 phase 4 line Delta connection 329 Vac to 433 Vac (L-L) 3 phase 5 line Y connection |
190 Vac to 250 Vac (L-L)
3 phase 4 line Delta connection 329 Vac to 433 Vac (L-L) 3 phase 5 line Y connection |
||
| Phase number | Single-phase, three-phase | Single-phase, three-phase | Three - phase, four - wire
Three phases, five wires |
Three - phase, four - wire
Three phases, five wires |
||
| Conventional input frequency | 50 Hz to 60 Hz | 50 Hz to 60 Hz | 50 Hz to 60 Hz | 50 Hz to 60 Hz | ||
| Input frequency range | 47 Hz to 63 Hz | 47 Hz to 63 Hz | 47 Hz to 63 Hz | 47 Hz to 63 Hz | ||
| Maximum input power | ≤1875 VA | ≤3750 VA | ≤7500 VA | ≤11250 VA | ||
| Power factor | ≥0.98 | ≥0.98 | > 0.8@ Full load (220Vac)
> 0.3@ Full load (380Vac) |
≥0.98 | ||
| Maximum input current | 90Vac: 22A | 190Vac: 20A | 190Vac: 35A/ phase
329Vac: 25A/ phase |
190Vac: 35A/ phase
329Vac: 25A/ phase |
||
| AC output Specifications (AC rms) |
|
|
|
|
|
|
| Voltage | Set the range | 0.0 V to 150.0 V 0.0 V to 300.0 V |
0.0 V to 150.0 V 0.0 V to 300.0 V |
0.0 V to 150.0 V / 0.0 V to 300.0 V
(in parallel) 0.0 V to 300.0 V / 0.0 V to 600.0 V (in series) |
0.0 V to 150.0 V / 0.0 V to 300.0 V |
|
| Resolution | 0.1 V | |||||
| Accuracy | ±(0.2 % of set + 0.3 V / 0.6 V) | ±(0.2 % of set + 0.3 V / 0.6 V) | ±(0.2 % of set + 0.3 V / 0.6 V)
(in parallel) ±(0.4 % of set + 0.6 V / 1.2 V) (in series) |
±(0.2 % of set + 0.3 V / 0.6 V) | ||
| 输出Phase number | Single-phase three-wire | Single-phase three-wire | Single-phase three-wire | Three phases and five wires | ||
| Maximum current | 150V | 15 A (150V) | 30 A (150V) | 60 A (150V) | 90 A (150V) (single-phase)
30 A (150V) (three-phase) |
|
| 300V | 7.5 A (300V) | 15 A (300V) | 30 A (300V) | 45 A (300V) (single-phase)
15 A (300V) (three-phase) |
||
| 600V | - | - | 15 A (600V) | - | ||
| Maximum peak current | 150V | 90 A (30Hz~100Hz)
75A (>100Hz~1kHz) |
90 A (30Hz~100Hz)
75A (>100Hz~1kHz) |
180 A (30Hz~100Hz)
150 A (>100Hz~1kHz) |
270 A (150V) (30Hz to 100Hz) (single-phase)
90 A (150V) (30Hz to 100Hz) (three-phase) 225 A (150V) (> 100Hz to 1kHz) (single-phase) 75 A (150V) (> 100Hz~1kHz) (three-phase) |
|
| 300V | 45 A (30Hz~100Hz)
38A (>100Hz~1kHz) |
45 A (30Hz~100Hz)
38A (>100Hz~1kHz) |
90 A (30Hz~100Hz)
75 A (>100Hz~1kHz) |
135 A (300V) (30Hz to 100Hz) (single-phase)
45 A (300V) (30Hz to 100Hz) (Three-phase) 113 A (300V) (> 100Hz to 1kHz) (single-phase) 38 A (300V) (>100Hz~1kHz) (三相) |
||
| 600V | - | - | 45 A (30Hz~100Hz)
38 A (>100Hz~1kHz) |
- | ||
| Load PF value | 0 to 1 (lead/lag) | |||||
| Output power | 1500 VA | 3000 VA | 6000 VA | 9000 VA | ||
| Frequency | Set the range | 交流:30.0 Hz ~ 1000.0 Hz，——
交流直流:1hz ~ 1000.0 Hz—— |
交流:30.0 Hz ~ 1000.0 Hz—— | |||
| 设定Resolution | 0.1 Hz (30.0 to 1000.0 Hz) | |||||
| Accuracy | 0.15% | |||||
| Output phase Angle | 0.0° to 359.9° 可调 (设置Resolution 0.1°) | |||||
| Dc output specifications |
|
|
|
|
|
|
| Voltage | Set the range | -212 V to +212 V / -424 V to +424 V | - | - | - | |
| 设定Resolution | 0.1 V | - | - | - | ||
| Accuracy | ±(0.2 % of set + 0.424 V / 0.848 V) |
|
|
- | ||
| Maximum current | 150 V | 7 A | - | - | - | |
| 300 V | 3.5 A | - | - | - | ||
| Maximum peak current | 150 V | 14 A | - | - | - | |
| 300 V | 7 A | - | - | - | ||
| Output power | 750W | - | - | - | ||
| Linear voltage stabilization rate | 0.1% | |||||
| Load regulator rate | 0.2% | 0.1% | 0.2% (in series)
0.8% (in parallel) |
0.2percent (three-phase)
0.8percent (single-phase) |
||
| 输出Voltage波形失真度 | ≤1% | |||||
| 输出Voltage反应时间 | 100 us (TYP) | |||||
| Output efficiency | 78percent typ.@ Full load,
110Vac input |
80percent typ.@Full load | 79percent min.@ Full load | 80percent typ.@Full load | ||
| Measurement and disy |
|
|
|
|
|
|
| Voltage | RMS, AVG value Resolution | 0.1 V | ||||
| PEAK value Resolution | 0.1 V | |||||
| Current | RMS, AVG value Resolution | 0.01 A | ||||
| PEAK value Resolution | 0.01 A | |||||
| Power | Active (W) Resolution | 0.1W | ||||
| Apparent (VA) Resolution | 0.1 VA | |||||
| Reactive (VAR) Resolution | 0.1 VAR | |||||
| Load PF value | Range | 0.000 to 1.000 | ||||
| Resolution | 0.001 | |||||
| Load CF value | Range | 1.2 to 1.414 | ||||
| Resolution | 0.001 | |||||
| 谐波Voltage | Range | Up to 39 times | ||||
| Other |
|
|
|
|
|
|
| Protect | UVP, OCP, OPP, SCP, OTP, FAN FAIL | |||||
| Show | STN-LCD, 6 " | |||||
| Memory group function | Store/Call, basic Settings: 4 (0~3 numeric keys) | |||||
| Arbitrary wave memory |
|
|
30 (nonvolatile) | |||
| General specifications |
|
|
|
|
|
|
| Interface | Standard configuration | GPIB | IEEE 488.2 Interface | |||
| RS-232C | Comply with EIA-RS-232 specifications | |||||
| External control | External control I/O | |||||
| Withstand voltage | Between input and chassis, output and chassis, input and output | 2210 Vac, 1 minute | ||||
| EMC | EN 61326-1 | |||||
| EN 61326-2-2 | ||||||
| EN 61000-3-2 (Class D) | ||||||
| EN 61000-3-3 | ||||||
| EN 61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-8/-4-11 (Class A, Group 1) | ||||||
| EN 55011 (Class A, Group1) | ||||||
| Security | EN 61010-1 | |||||
| Environment | 应用Environment | Indoor use, overpressure class II | ||||
| Operating temperature | 0 °C to 40 °C | |||||
| Storage temperature | -40 °C to 85 °C | -40 °C to 60 °C | ||||
| Storage humidity | ≤90 percent RH (no condensation) | |||||
| Altitude | ≤ 2000 m | |||||
| Size (mm) | 425(W)×133(H)×525(D) | 425(W)×176(H)×520(D) | 546(W)×844.5(H)×700(D) | 546(W)×1025(H)×700(D) | ||
| Weight (Kg) | 22kg | 28kg | 105kg | 153kg | ||
