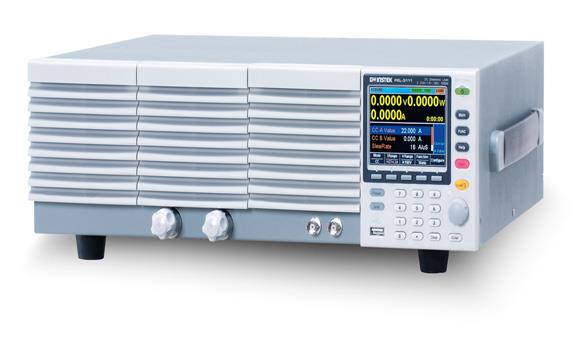

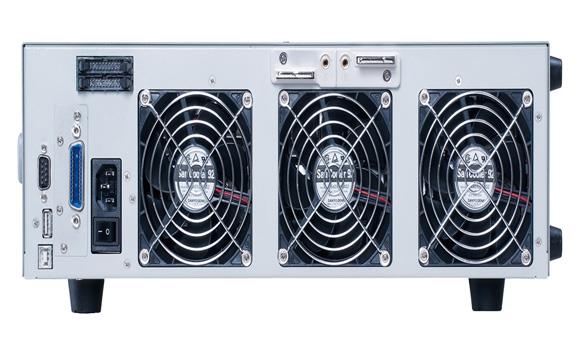

PEL-3000 series (PEL-3021, PEL-3041, PEL-3111, PEL-3211, PEL-3212, PEL-3323, PEL-3424)

Model:PEL-3000系列（PEL-3021，PEL-3041，PEL-3111，PEL-3211，PEL-3212，PEL-3323，PEL-3424）

Brand:固纬Gwinstek

Introduction:Operating voltage (DC) : 1.5V-150V Seven operating modes: CC, CV, CR, CP, CC CV, CR CV, CP CV High power: parallel operation maximum up to: 56.7KW High speed adjustable slope (16A/uS) High efficiency load simulation: Sequence function Programming function (Go/NoGo test) Dynamic (switch) function: 0.0166Hz-20 KHZ Soft start function short circuit function timing function Timing function: 1s-999h 59min 59s, disable the external channel control/analog control function OPP/OCP/OVP/UVP Settings Adjustable 3.5
