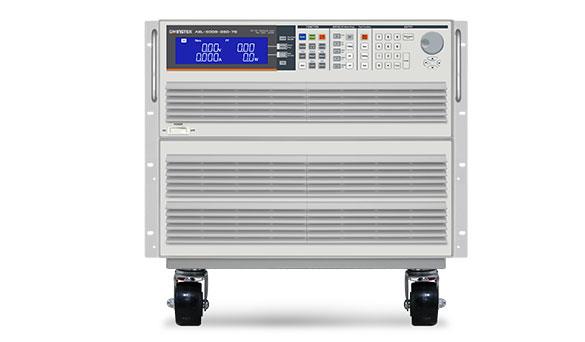

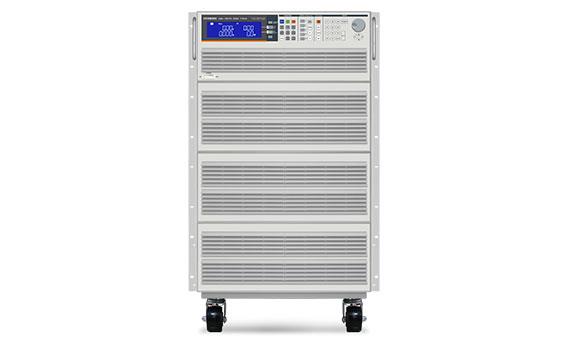

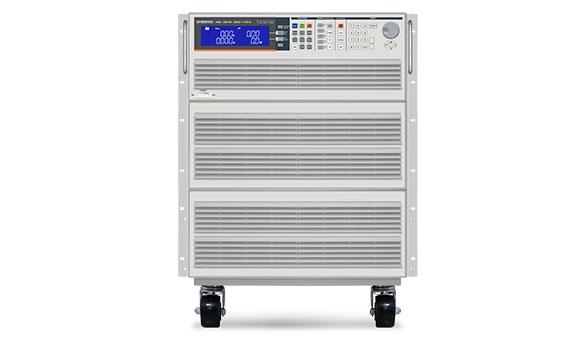

AEL-5000

Model:AEL-5000

Brand:固纬Gwinstek

Introduction:Ac/DC load with constant current, linear constant current, constant resistance, constant voltage, constant power and rectified load, etc. Peak factor range: 1.414~5.0 Power factor range: 0~1 Ahead or behind built in test mode Turbomode(Multiplier mode) Time measurement can be applied to battery, UPS, fuses and circuit breakers and other tests up to eight parallel up to 180KW and three-phase △ or Y load synchronous control support on-load startup Support pumping and unloading Angle control Support positive or negative half-cycle pumping support SCR/TRIAC current modulation waveform, 90 degrees Leading Edge and leading Edge frequency range: DC, 40~440Hz(480V models: DC, 40-70Hz) External voltage control Over voltage warning, over current, over power, and over temperature protection Optional ports: GPIB, RS-232C, USB, LAN
