Characteristic

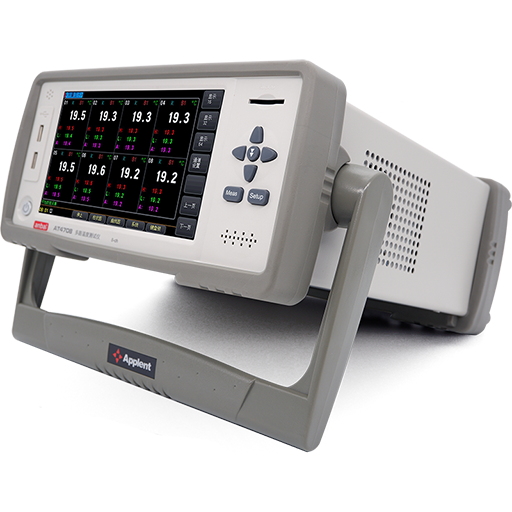

7 "TFT true color LCD
The bar chart shows that
High value, low value, average value shows
Cold end compensation
The standard USB disk port supports mass storage devices
Standard RS232C interface and USB interface
Automatic coupling detection
Specify channel scan
Standard data acquisition software
Multichannel temperature test
Multi - channel humidity test
Specifications
| Dividing sign | Thermocouple: J/K/T/E/S/N/B/R type
Thermal resistance: PT100,CU50, Humidity: Humidity test module (optional) Voltage :DCV |
| Basic accuracy | 0.2℃±1 word (not including sensor error) |
| Test range | -200℃~1800℃（Test range因Dividing sign不同而有差异）
DCV:100mV~100V |
| Resolution | 0.1℃ |
| Number of channels | No. 40; |
| Scanning speed | Scan all channels in 1 second |
| Correction | Per channel error correction |
| Comparator | Each channel separately sets the upper and lower super values |

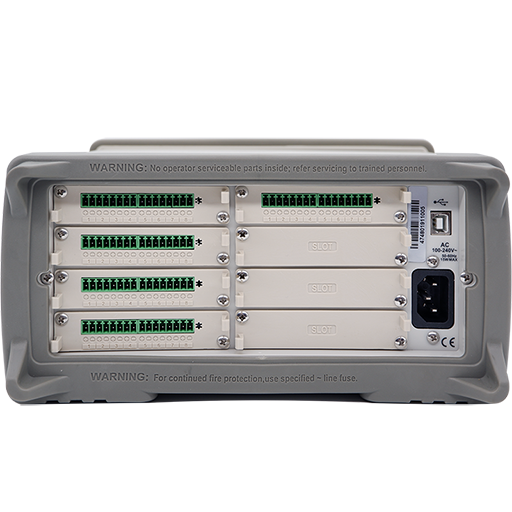

| Standard interface | RS232C port USB flash drive port USB communication port |
| Standard software | 数据采集软件 |
| Cold end compensation | Accuracy: 0.5℃ |
| Other | TFT-LCD true color liquid crystal disy, broken couple detection function |
| Power requirements | Voltage: 85VAC ~ 260VAC Frequency: 50Hz/60Hz Power: 10VA |
| Size and weight | 216(W)x88(H)x300(D) Weight: 3kg |
| Attachment | Type K thermocouple 40 PCS (2 m/PCS) data acquisition software CD |
