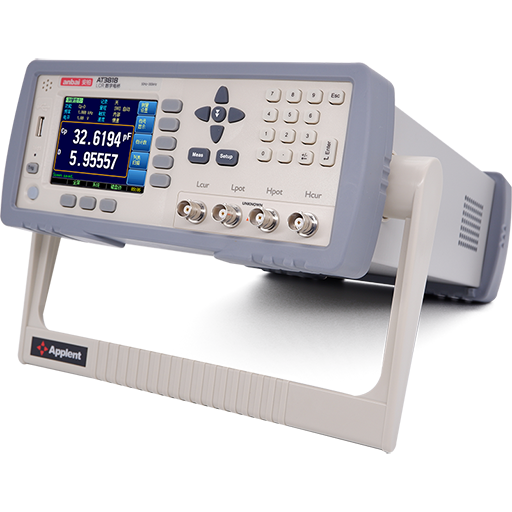

Characteristic
High brightness, true color LCD disy.
Calibration function: full range of open and short circuit frequency sweep zero.
10 groups of file management, can fully store instrument status and comparator Settings
Enhanced comparator (sorting) function: programmable P1~P3 3 grade sorting, main parameters HI,IN,LO disy and output,NG,AUX,SREJ,IDX,EOM disy and output
Absolute deviation (ABS) comparison method and relative deviation comparison method
Automatic range selection according to nominal value.
Switchable accessory file (AUX) sorting.
Programmable 1 ~ 256 average times to provide stability.
Built-in RS232C interface and Handler interface.
1000V super impact protection
Specifications
| Measurement parameters | Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg |
| Basic accuracy | 0.05% |
| Test frequency | 50Hz to 100kHz (16 frequency points) |
| Test range | Automatic, manual and nominal ranges,9 ranges |
| Test the speed | 40/10/3 times/second |
| Disy range | L: 0.00001μH-9999.99H
C: 0.00001pF – 9999.99μF R,X,Z: 0.00001Ω - 99.9999MΩ D, 0.00001 – 9.99999 Q: 0.00001 – 99999.9 Δ%: -999999% - 999999% θ(deg): -179.999° -179.999° θ(rad):-3.14159 – 3.14159 DCR: 0.00001Ω ~ 99.9999MΩ |
| Output impedance | 30,50, and 100 |
| Monitor parameters | Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% |
| The reading | All parameters are six digits: 999999 |
| Equivalent mode | Series and parallel |
| Signal level | 0.1V/0.3V/1V |
| The average number of times | 1~256 |
| Trigger mode | Internal, manual, external and remote |
| Trigger delay | 0.01ms~60s |
| Comparator | 14 file sorting,10 groups of qualified files,1 group of unqualified files,
1 group of sub-parameter unqualified file |
| List scan | 10 steps (frequency, voltage and current) |
| Comparison mode | SEQ/ABS/PER |
| Calibrate | Open circuit clearing, short circuit clearing (sweep frequency and dot frequency) |
| File | 内部存储10个File,外部USB存储10个File |
| Data recording | 9999 组File（.csv) |
| Ring function | Pass/pass/fail |

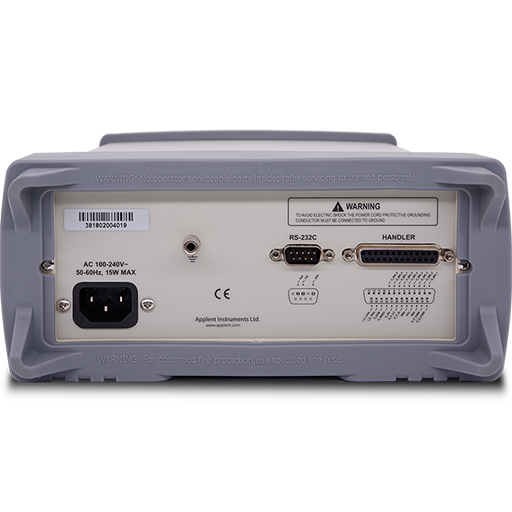

| Interface | RS232/HANDLER |
| Communication protocol | SCPI |
| Other functions | Automatic LCZ |
| Power requirements | AC 100V-240V, 50Hz-60Hz
20W MAX |
| Size and weight | 264 (W)x107(H)x350 (D)
3kg, net weight |
