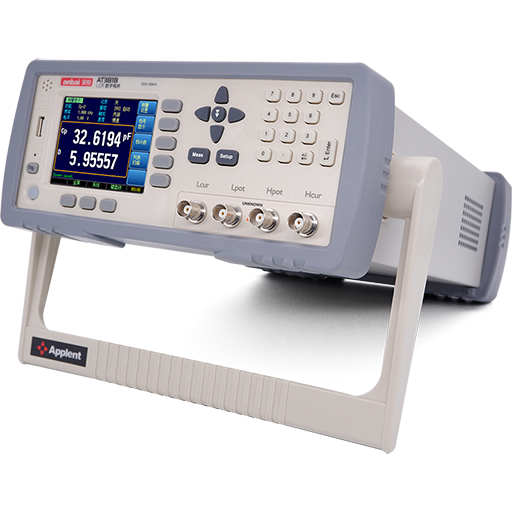

Characteristic
True color TFT-LCD full Chinese disy.
Calibration function: full range range open and short circuit scavenging, three groups of user point frequency calibration
Multi-frequency test: Support 10 frequency scan test
Multilevel test: Support 10 level sweep tests
File management: 10 groups of internal storage and 10 groups of USB disk storage
增强型Comparator（分选）功能：可编程的P1~P9 Nine grade sorting, main parameters HI,IN,LO disy and output,NG,AUX,SREJ,IDX,EOM disy and output.
Absolute deviation (ABS) comparison method, relative deviation (PER) and SEQ comparison method.
Switchable AUX sorting.
Custom sorting results ring.

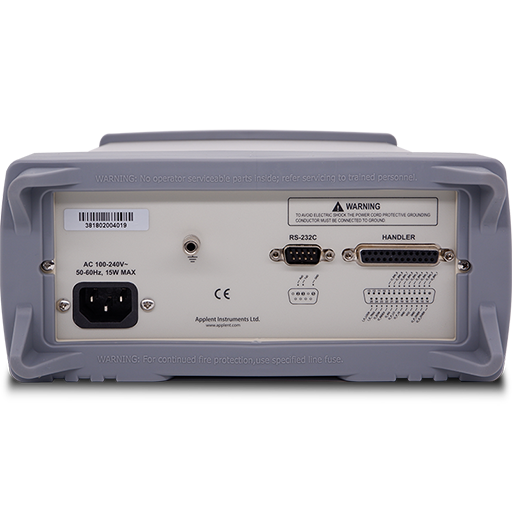

Built-in RS232C interface and Handler interface.
Built-in RS485/USB port (applicable to Rev.E)
GPIB interface Optional (Applicable to Rev.E)
1000V super impact protection
Specifications
| Measurement parameters | Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg |
| Basic accuracy | 0.05% |
| Test frequency | 10Hz to 300kHz (resolution 0.01Hz) |
| Test range | Automatic, manual and nominal ranges,9 ranges |
| Test the speed | 30 times per second 10 times per second,5 times per second,
3 times per second |
| Disy range | L: 0.00001μH-9999.99H
C: 0.00001pF – 9999.99μF R,X,Z: 0.00001Ω - 99.9999MΩ D, 0.00001 – 9.99999 Q: 0.00001 – 99999.9 Δ%: -999999% - 999999% θ(deg): -179.999° -179.999° θ(rad):-3.14159 – 3.14159 |
| Output impedance | 30,50, and 100 |
| Monitor parameters | Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% |
| The reading | All parameters are six digits: 999999 |
| Equivalent mode | Series and parallel equivalent |
| Signal level | 10.00mV~2.00V AC
100.0μA~20.00mA AC |
| The average number of times | 1~256 |
| Trigger mode | Internal, manual, external and remote |
| Trigger delay | 0.01ms~60s |
| Comparator | 14 file sorting,10 groups of qualified files,1 group of unqualified files,
1 group of sub-parameter unqualified file File counting function: file counting 999999 |
| List scan | 10 sets of frequency and level sweep tests |
| Comparison mode | SEQ/ABS/PER |
| Calibrate | 开路 / 短路扫频,3 点频清零和负载Calibrate |
| File | 内部存储10个File
外部USB存储10个File |
| Data recording | 9999 组File（.csv) |
| Ring function | Pass/pass/fail |
| Interface | RS232/RS485/USB/HANDLER/GPIB(可选)
(Rev.E and later features) |
| Communication protocol | SCPI/Modbus*
(*Rev.E) |
| Other functions | Automatic LCZ |
| Power requirements | AC 85V-240V, 50Hz-60Hz
20W MAX |
| Size and weight | 264 (W)x107(H)x350 (D)
3kg, net weight |
