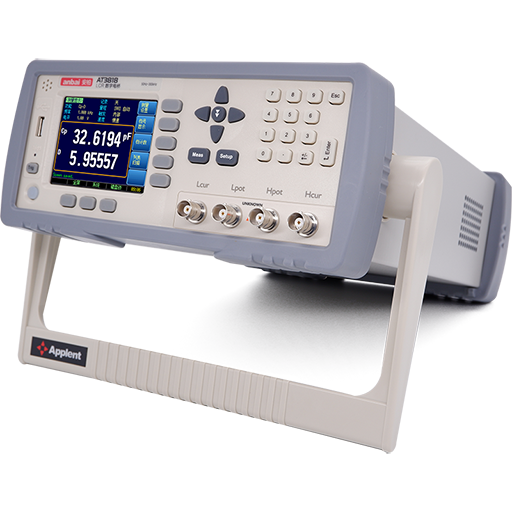

Characteristic
True color TFT-LCD disy.
Store 999 LCD picture files, trigger delay
Automatic level control (ALC)
Calibration function: full range range open and short circuit scavenging, three groups of user point frequency calibration
Multi-frequency test: Support 10 frequency scan test
Multilevel test: Support 10 level sweep tests
10 groups of file management, can fully store instrument status, list scan Settings and comparator Settings
增强型Comparator（分选）功能：可编程的P1~P9 Nine grade sorting, main parameters HI,IN,LO disy and output,NG,AUX,SREJ,IDX,EOM disy and output.
Absolute deviation (ABS) comparison method, relative deviation (PER) and SEQ comparison method.
Switchable accessory file (AUX) sorting.
Programmable 1 ~ 256 average times to provide stability.
Custom sorting results ring.
Built-in RS232C/RS485/USB port and Handler port. GPIB port is optional
SCPI and Modbus communication protocols.
1000V super impact protection
Specifications
| Measurement parameters | Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdegDCR |
| Basic accuracy | Slow/medium speed: 0.05percent; Fast: 0.1percent |
| Test frequency | 10Hz to 300kHz (resolution 0.001Hz) |
| Test range | Automatic, manual and nominal ranges,9 ranges |
| Test the speed | 40 times per second, 10 times per second, 3 times per second |
| Disy range | L: 0.00001μH-9999.99H
C: 0.00001pF – 9999.99μF R,X,Z: 0.00001Ω - 99.9999MΩ D, 0.00001 – 9.99999 Q: 0.00001 – 99999.9 Δ%: -999999% - 999999% θ(deg): -179.999° -179.999° θ(rad):-3.14159 – 3.14159 DCR: 0.00001Ω ~ 99.9999MΩ |
| Output impedance | 30,50, and 100 |
| Monitor parameters | Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% |
| The reading | All parameters are six digits: 999999 |
| Equivalent mode | Series and parallel equivalent |
| Signal level | 10.00mV to 2.00V AC (Constant level supported)
100.0μA to 20.00mA AC (constant level supported) |
| Dc offset | -2.5V~+2.5V (0.5%+0.005V) |
| The average number of times | 1~256 |
| Trigger mode | Internal, manual, external and remote |
| Trigger delay | 0.01ms~60s |
| Comparator | 14 file sorting,10 groups of qualified files,1 group of unqualified files,
1 group of sub-parameter unqualified file File counting function: file counting 999999 |
| List scan | 10 steps (frequency, voltage and current) |
| Comparison mode | Sequence/absolute deviation/relative deviation |
| Calibrate | Open circuit clearing, short circuit clearing (sweep frequency and dot frequency) |
| File | 内部存储10个File
外部USB存储10个File |
| Data recording | 9999 组File（.csv) |
| Ring function | Pass/pass/fail |

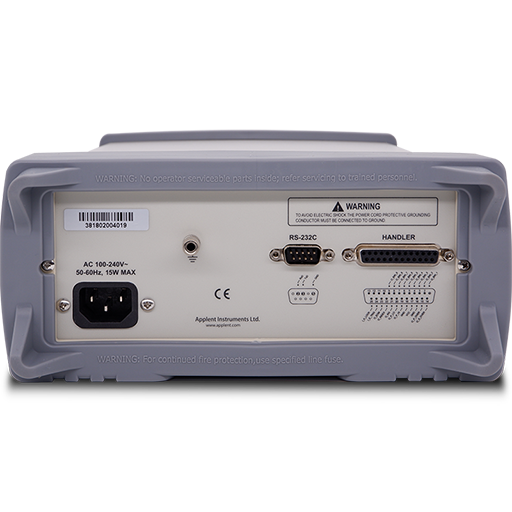

| Interface | RS232/RS485/USB/HANDLER/GPIB(可选) |
| Communication protocol | SCPI/Modbus |
| Other functions | Automatic LCZ |
| Power requirements | AC 100V-240V, 50Hz-60Hz
20W MAX |
| Size and weight | 264 (W)x107(H)x350 (D)
3kg, net weight |
