Characteristic
High brightness, super clear four color VFD disy.
Calibration function: full range of open and short circuit frequency sweep zero.
The third window can simultaneously disy Z, D, Q, ΔABS, Δpercent or sorting results.
Comparator (sorting) function
Specifications
| Measurement parameters | L,C,R,Z,D,Q |
| Basic accuracy | 0.1% |
| Test frequency | 50Hz,60Hz,100Hz,120Hz,1kHz,10kHz,
20kHz,40kHz,50kHz, 100kHz(10个字)—— |
| Test range | Automatic, manual and nominal ranges,6 ranges |
| Test the speed | 3 times per second 8 times per second 20 times per second |
| Disy range | L: 0.001μH-9999.9H
C: 0.001pF – 9999.9μF R,X,Z: 0.0001Ω - 99.999MΩ D, 0.00001 – 9.99999 Q: 0.00001 – 99999.9 |
| Output impedance | 30 and 100Ω |
| Monitor parameters | Z, D, Q, Δ, Δ% |
| The reading | All parameters have 5 digits: 99999 |
| Equivalent mode | Series and parallel equivalent |
| Signal level | 0.1Vrms, 0.3Vrms and 1Vrms |
| Trigger mode | Internal, manual, external and remote |
| Comparator | Five-speed sorting,P1/P2/P3/AUX/NG |
| Comparison mode | SEQ/ABS/PER |
| Calibrate | Open circuit clearing, short circuit clearing- |
| Ring function | Turn off /P1/P2/P3/AUX/NG |

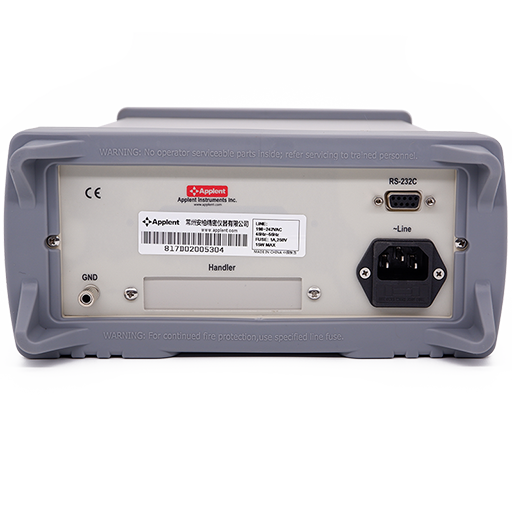

| Interface | RS232/HANDLER |
| Communication protocol | SCPI |
| Power requirements | AC 198V-240V, 50Hz-60Hz
15W MAX |
| Size and weight | 264 (W)x107(H)x350 (D)
4kg, net weight |
