Characteristic
Comparator（分选）功能：内置30组记录 , GD/NG judgment can be made on the tested parts.
Audible and disy adjustable: Users can set GD/NG audible and adjust disy brightness according to their needs
Compatible with SCPI programming specification
Optional 500mA pre-charging interface .
Specifications
| Measurement parameters | Insulation resistance and leakage current |
| Output voltage | Numerical control 1V ~ 1000VDC |
| Basic accuracy | <10G: 3% ≥10G: 5% ≥100Ｇ: 10% |
| Test range | 10k-10TΩ(104~1013 Ω) |
| The reading | 9999 |
| The range of | Automatic and manual |
| Test the speed | 55 times per second,15 times per second,3 times per second |
| Correction | 全The range of开路清零 |
| Show the result | Direct reading, current, resistance, peak value and sorting results |
| Charging timer | 999.9s |
| Charging current | 200mA max |
| Comparator | 30 sets of records,GD/NG sound: GD,NG, off Settings Settings |

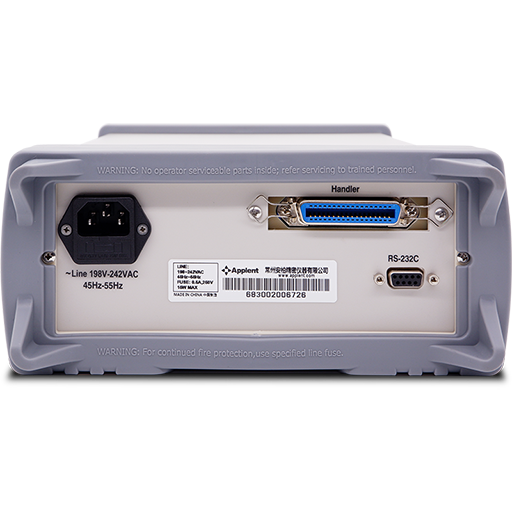

| Interface | RS-232CInterface HandlerInterface |
| Power requirements | Voltage: 198VAC ~ 240VAC Frequency: 50Hz Power MAX: 30VA |
| Size and weight | External dimension (mm) : 264 (W)x107(H)x350 (D) Weight: 5kg |
| Attachment | ATL507：测试夹 ATL801：RS232Interface电缆 |
| Other | VFD four-color HD color screen, keyboard lock and data retention |
