Characteristic
Comparator（分选）功能：内置30组记录 , GD/NG judgment can be made on the tested parts.
Compatible with SCPI programming specification
Specifications
| Measurement parameters | Leakage current and insulation resistance |
| Output voltage | CNC 50V ~ 2500VDC |
| Basic accuracy | <10G: 3% ≥10G: 5% ≥100Ｇ: 10% |
| Test range | 200k-100GΩ |
| The reading | 20000 numbers |
| The range of | Automatic and manual |
| Test the speed | 100 times per second,55 times per second,3 times per second |
| Correction | 全The range of开路清零 |
| Show the result | Direct reading, current, resistance, peak and sorting results |
| Charging timer | 999.9s |
| Comparator | GD/NG ring: GD,NG, off Settings Settings |

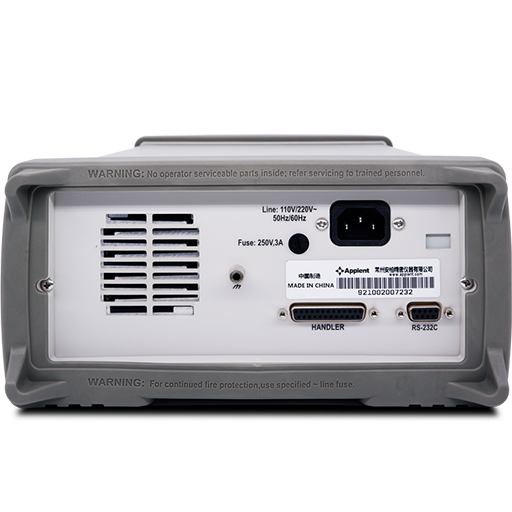

| Interface | HANDLER ( PLC ) Interface
RS-232CInterface |
| Power requirements | Voltage: 198VAC ~ 240VAC Frequency: 50Hz Power MAX: 30VA |
| Size and weight | 270mm(W)x130mm(H)x450mm (D), 8kg |
| Other | LCD disy, timer can be set counting and countdown |
