Characteristic
Comparator (sorting) function: OK/NG judgment on the measured parts.
Capacitor open circuit detection function
Sound: Users can set OK/NG sound according to their needs.
Compatible with SCPI programming specification
Specifications
| Measurement parameters | 绝缘电阻和漏电流 |
| Output voltage | Numerical control 1V ~ 1000VDC |
| Basic accuracy | <10G: 3% ≥10G: 5% ≥100Ｇ: 10% |
| Test range | 100k-10TΩ |
| The reading | 20000 numbers |
| The range of | Automatic and manual |
| Test the speed | 55 times per second,25 times per second,3 times per second |
| Correction | 全The range of开路清零 |
| Show the result | Direct reading, current, resistance and sorting results |
| Charging timer | 999.9s |
| Charging current | 200mA max |
| Comparator | OK/NG |

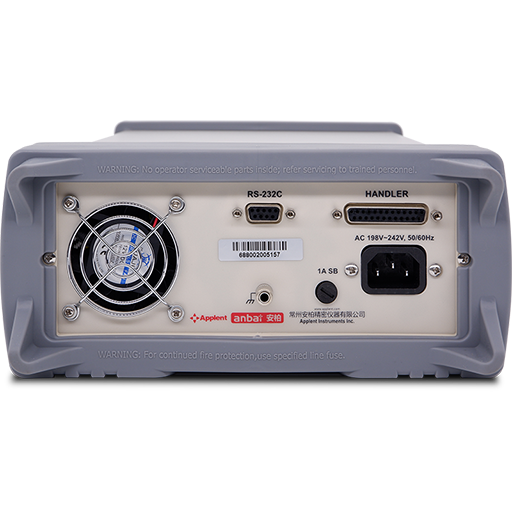

| Interface | RS-232C/Handler/USB/RS485(Option) |
| Power requirements | Voltage: 198VAC ~ 240VAC Frequency: 50Hz
Power: 30VA |
| Size and weight | 264 (W)x107(H)x350 (D)
Weight: 5kg |
| Attachment | ATL507：测试夹 ATL801：RS232Interface电缆 |
| Other | Capacitor open circuit detection function
LCD disy, timer can be set counting and countdown |
