Characteristic
High brightness, super clear four color VFD disy, a variety of parameters disy at the same time
Charge test automatic switch.
Peak hold function.
Full range open circuit zero clearing function.
Comparator output: The sorting result can be output through RS232C or Handler interface
Audible: Audible switch can be set.
Adjustable sound and disy: You can set GD/NG sound and trigger modes as required: internal trigger, manual trigger, external trigger, and remote trigger.
Adjust the disy brightness
Optional foot switch.
Specifications
| Measurement parameters | Leakage current and insulation resistance |
| Basic accuracy | 1% |
| Output voltage | Numerical control 1V ~ 650VDC |
| Test range | Flow: 1nA~20mA
Resistance: 1kΩ~325GΩ |
| The reading | 9999 |
| The range of | Automatic and manual |
| Charging current | Automatic and manual |
| Test the speed | 55 次 / 秒,15 次 / 秒,3 次 / 秒 |
| Show the result | Direct reading, current, resistance,
Peak and sorting results |
| Charging timer | 999.9s |
| Comparator | 30 sets of records,
OK/NG |
| Ring | OK、NG、
Off Settings and volume Settings. |

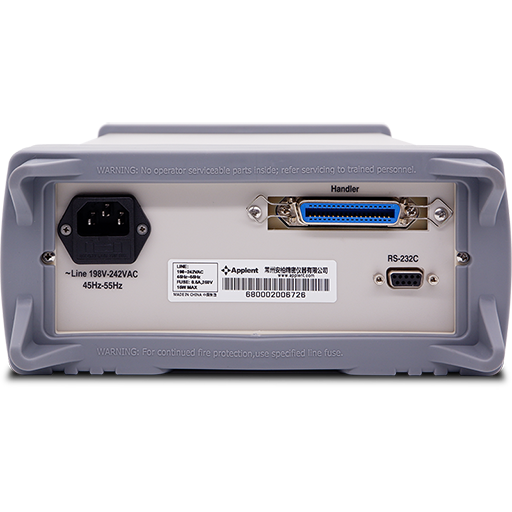

| Interface | RS-232 Interface
Handler Interface |
| Size and weight | External dimensions (mm) : 264 (W)x107(H)x350 (D)
Inner dimensions: 216(W)x88(H)x323(D) 5kg |
