Characteristic
Charge test automatic switch.
Peak hold function.
Full range open circuit zero clearing function.
Comparator output: The sorting result can be output through RS232C or Handler interface
Specifications
| Measurement parameters | Leakage current |
| Basic accuracy | 2% |
| Output voltage | No internal voltage source |
| Test range | Current: 10nA~20mA |
| The reading | 8-channel parallel /9999 |
| The range of | Manual |
| Charging current | None |
| Test the speed | 20 times per second |
| Show the result | Direct reading |
| Correction | None |
| Charging timer | None |
| Comparator | 10档Comparator独立输出 |
| Ring | OK,NG, off Settings and volume Settings |

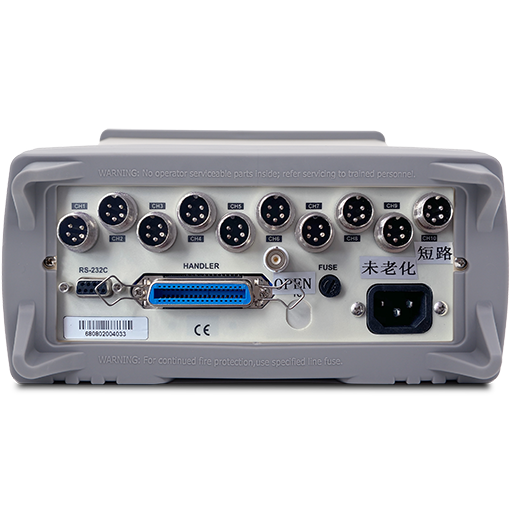

| Interface | RS-232Interface HandlerInterface |
| Power requirements | Voltage: 198VAC ~ 240VAC Frequency: 50Hz |
| Size and weight | Outer dimension (mm) : 264 (W)x107(H)x350 (D) Inner dimension: 216(W)x88(H)x323(D) 5kg |
