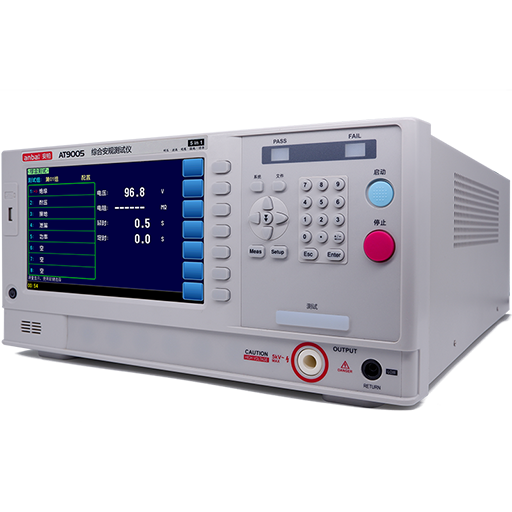

Characteristic
Voltage resistance, insulation, grounding, leakage, power, start six functions of the joint test (6 choose 5)
Equipped with PLC control interface, frequency conversion power control interface, communication interface, etc., can be connected to the external supporting facilities to achieve automatic testing
0.5 s response and test speed;
1.5 class safety test accuracy,0.5 class electrical parameter test accuracy;
With unique self-test function, simplify production operation, do not need to re-self-test after changing groups;
With more standard line compensation function, more accurate calculation;
Equipped with USB interface, can realize the mass storage of test results;
Suitable for household appliances, lamps, power tools and other different industry testing requirements;
Chinese menu prompts operation steps, easy to understand, full digital keyboard operation, setting more convenient;
The lower limit can be set to eliminate missing product inspection; To the product test failure, intelligent analysis, sound and light alarm
Specifications
| Test function | Ac/DC voltage resistance, insulation resistance, grounding, leakage, AC/DC power |
| Interface | RS232/RS485/USB/HANDLER
外部遥控Interface/报警灯Interface |
| Protection function | Overvoltage, overcurrent |
| Other functions | 9 "True color LCD |
| Ac withstand voltage | |
| Rated output | 5kV AC,40mA |
| Actual output power | 200VA |
| Output voltage | 100~5000VAC(resolution 1V) |
| Voltage accuracy | 2% × Reading + 5Digits |
| Output frequency | 50Hz / 60Hz, accuracy: ±0.1Hz |
| Measure the current | 0.005-9.999mA-40.00mA
Resolution: 0.001mA/0.01mA |
| Current accuracy | 2% × Reading + 5Digits |
| Voltage rise time | 0.1s-999.9s |
| Test time | 0.5s-999.9s |
| Voltage drop time | 0.1s-999.9s |
| Dc voltage resistance | |
| Rated output | 6kV DC/10mA |
| Actual output power | 120VA |
| Output voltage | 100~6kV DC
Resolution: 1V |
| Voltage accuracy | 2% × Reading + 5Digits |
| Voltage adjustment rate | <2% |
| Voltage rise time | 0.1s-999.9s |
| Test time | 0.5s-999.9s |
| Voltage drop time | 0.1s-999.9s |
| Insulation resistance | |
| Rated output | 1kV/10GΩ |
| Output voltage | 100~1000V
Resolution: 1V |
| Voltage accuracy | 2% × Reading + 5Digits |
| Measuring range | 0.1MΩ-10GΩ |
| Resistance accuracy | <500V:
0.1MΩ-100 MΩ: 5%×Reading+5Digits 100MΩ-1 GΩ : 10%×Reading+5Digits ≥500V: 0.1MΩ-100 MΩ: 2%×Reading+5Digits 100MΩ-2 GΩ: 5%×Reading+5Digits 2 GΩ-10GΩ: 10%×Reading+5Digits |
| Test time | 0.5s-999.9s |
| Ground resistance | |
| Rated output | 30A, 600mΩ |
| Output current | 30A |
| Output voltage | <12V |
| Frequency | 50Hz / 60Hz, accuracy: ±0.1Hz |
| Test time | 0.5s-999.9s |
| Leakage current | |
| Test voltage output | Single-phase (need external isolation transformer and frequency conversion power supply) |
| Test type | G-L,G-N,AUTO(G-L,G-N) |
| Ac voltage measurement | 5.0-300.0V
Resolution: 0.1V Accuracy: 1.5percent×Reading 3V |
| Ac current measurement | 0.000-9.999-20.00mA
Resolution :0.001mA/0.01mA Accuracy: 0.005-9.999mA ±（1.5%×Reading+0.005mA） 10.00-20.00mA ±（1.5%×Reading+0.05mA） |
| Test time | 0.1s-999.9s |
| Ac power | |
| Test voltage output | Single-phase (need external isolation transformer and frequency conversion power supply) |
| Ac voltage measurement | 0.0 - 300.0V
分辨率: 0.1V Accuracy: ± (0.25percent×Reading 0.25percent×Range) |
| Ac current measurement | 0.000-9.999-25.00A
Resolution :0.001A/0.01A Accuracy: ± (0.25percent×Reading 0.25×Range) |
| Active power measurement | 5.0-999.9-6000W
Resolution: 0.1W/1W Accuracy: ± (0.25percent×Reading 0.25×Range) |
| Power factor measurement | -1.00 – 1.000
Resolution: 0.001 Accuracy: ± (0.5percent×Reading 0.01) |
| Test time | 0.1s-999.9s |
| Dc power | |
| Test voltage output | Need external DC power supply |
| Dc voltage measurement | 0.0-300.0V
Resolution: 0.1V Accuracy: ± (0.25percent×Reading 0.25percent×Range) |
| Dc current measurement | 0.000-9.999-25.00A
Resolution: 0.001A/0.01A Accuracy: ± (0.25percent×Reading 0.25×Range) |
| Power measurement | 5.0-999.9-6000W
Resolution: 0.1W/1W Accuracy: ± (0.25percent×Reading 0.25×Range) |
| Test time | 0.1s-999.9s |
| Power requirements | 198V~242V AC
50Hz/60Hz 300VA |
| Size and weight | 400 x 200 x503.5(mm)
30kg |
