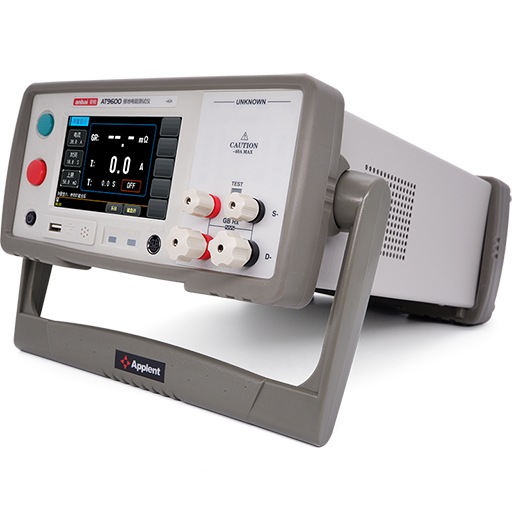

Characteristic
5 "TFT color screen
Ground impedance
Output current test time synchronous disy
Upper limit alarm, upper limit buzzer alarm
Specifications
| Test function | Ground resistance |

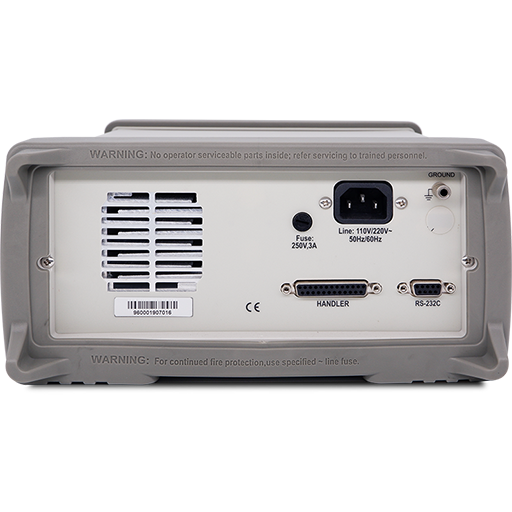

| Interface | RS232/RS485/USB/HANDLER |
| Standard configuration | AC 5A~40A |
| Comparator | Upper and lower limits sound and light alarm |
| Protection function | Overvoltage |
| Ground resistance | 0 ～ 600mΩ
Accuracy ±(2percent× reading value 5 words) resolution 0.1 mΩ |
| Current setting range | AC 5A ~ 40A, accuracy ±(2percent× reading 5 words),
Resolution 0.1A |
| Power requirements | AC 220V 50Hz
Power < 200W |
| Size and weight | 250mm (W) x 120mm (H) x 320mm (D)
10kg |
| Attachment | Power cord
RS232 Communication cable ATL900A Test clamp |
