Characteristic
Low noise and ripple

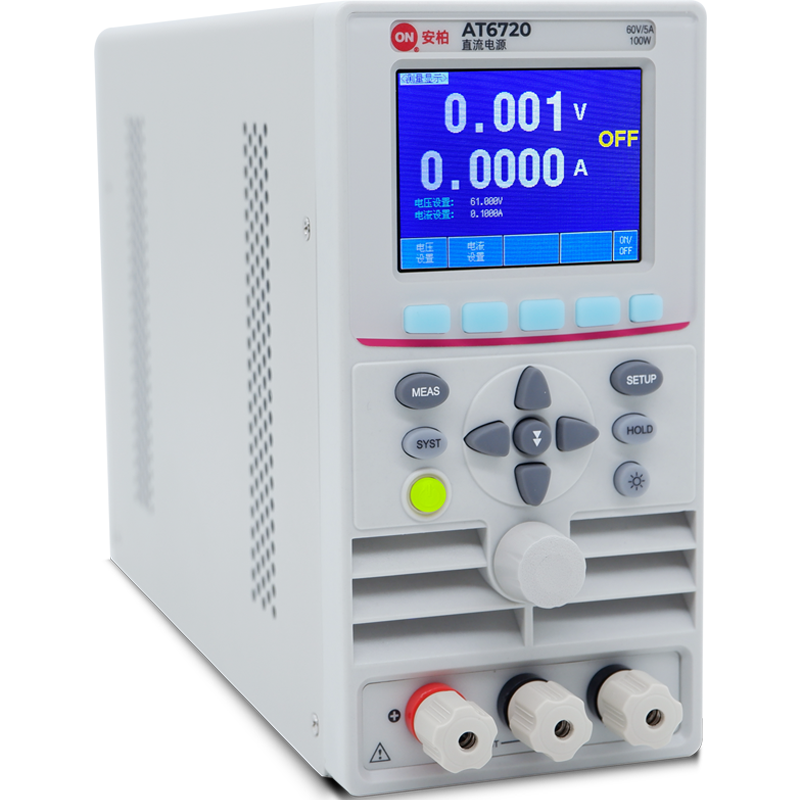

True color LCD screen
Five protection OVP /OCP /OHP /RVP/ACP
1mV/0.1mA High resolution
Wide range design, one can rece 3 instruments
CC and CV modes are automatically selected

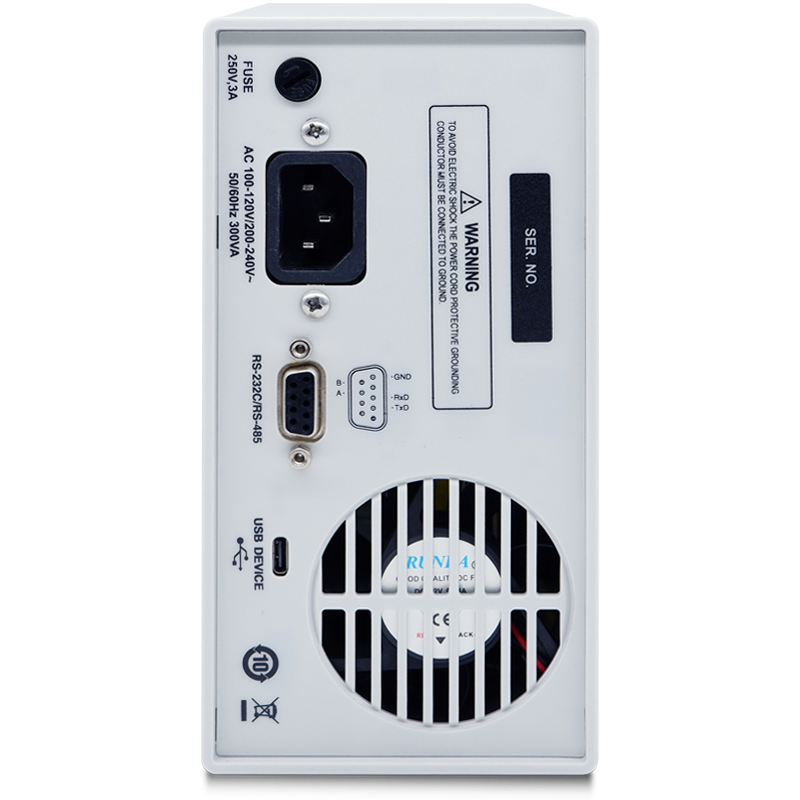

RS232/485 Communication port
Type-CInterface
110V/220V power supply automatic discrimination
Specifications
| Output voltage范围 | 0~60V |
| Output current range | 0~5A |
| Output maximum power | 100W |
| Voltage setting | ○ |
| Read back resolution | 1mV |
| Read back accuracy | ±0.05%,±6dgt |
| Current setting | ○ |
| Read back resolution | 0.1mA |
| Read back accuracy | ±0.1%,±10dgt |
| Ripple voltage | <5mV rms |
| Ripple current | <5mA rms |
| Load adjustment rate | ○ |
| Output voltage | <0.01%+3mV |
| Output current | <0.01%+3mA |
| Output voltage | <0.01%+3mV |
| Interface | RS485Interface,RS232Interface,Type-cInterface |
| Power requirements | Voltage: 110/220VAC |
| Size and weight | External dimensions (mm) : 87.8 (W)x174(H)x 279.25(D)
2KG |
| Attachment | ATL509 Test cable, power cord |
| 可选Attachment | ATL108 RS232 Communication cable |
