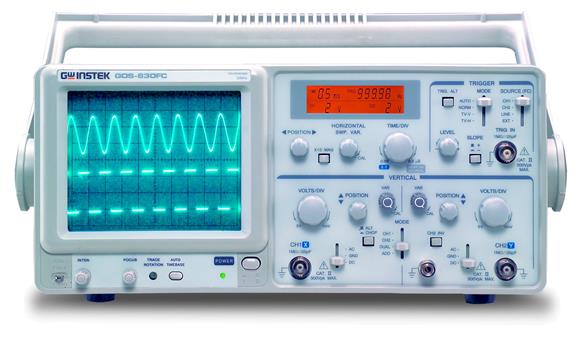

| Vertical system | |
| Sensitivity | 1mV to 5V/div, with 12 file bits -- -- in 1-2-5 sequence |
| Accuracy | ≦3%, (1mV/div, 2mV/div: 5%) |
| 微调垂直Sensitivity | ≦1/2.5 panel read values |
| Bandwidth | DC～30MHz (1mV/div, 2mV/div: DC～7MHz) |
| Rise time | 11.7ns (1mV/div, 2mV/div:约50ns |
| Input impedance | About 1MΩ // About 25pF |
| Square wave property | Overshoot: 5percent (at 10mV/div) |
| Linearity | < Amplitude variation of ±100.1div |
| Vertical mode | CH1, CH2, DUAL (ALT/CHOP), ADD |
| Repeated chopper frequency | Approx. 250kHz |
| Input coupling mode | AC, DC, GND |
| Maximum input voltage | CAT II 300V(DC+ACpeak) |
| Common-mode rejection ratio | 50:1 or better at 50kHz sine wave |
| Trigger system | |
| Trigger source | CH1, CH2, ALT, LINE, EXT |
| Coupling | AC: 20Hz to full bandwidth |
| Polarity | + / - |
| Sensitivity | 20Hz ～ 2 MHz : 0.5 div, TRIG-ALT : 2 div, EXT : 200mV |
| 2MHz ～ 30MHz : 1.5 div, TRIG-ALT : 3 div, EXT : 800mV | |
| TV: Synchronous pulse 1 div (EXT: 1V) | |
| Trigger mode | AUTO , NORM , TV-V , TV-H |
| External trigger signal input | |
| Input impedance | About 1MΩ// About 25pF |
| Maximum input voltage | CAT II 300V(DC+AC peak) |
| Horizontal system | |
| Scanning time | 0.2μS to 0.5 S/div, a total of 20 gears according to 1-2-5 |
| Scanning time准确度 | ±3% |
| 可变Scanning time控制 | ≦ 1/2.5 of panel disy value |
| Scanning magnification | 10 times |
| ×10MAG Scanning time准确度 | ±5percent (20nSec ~ 50nSec not calibrated) |
| Linearity | ±3percent, ×10MAG:±5percent (20ns and 50ns not calibrated) |
| The X-Y pattern | |
| Sensitivity | Same as the vertical axis |
| Bandwidth | 直流:500kHz |
| X-Y phase difference | ≦3°DC ~50kHz—— |
| The Z axis | |
| Sensitivity | 5 Vp-p (track will be darkened when input positive signal) |
| Bandwidth | DC ～ 2MHz |
| Input impedance | About 47 kω |
| Maximum input voltage | CAI II 30V(DC+AC peak) |
| Correction voltage | |
| Waveform | Forward square wave |
| Frequency | About 1 kHz |
| Duty cycle | Within 48:52 |
| Output voltage | 2 Vp-p ±2% |
| Output impedance | About 1 kΩ |
| Frequency meter | |
| Disy digit | 十进制 5位 |
| Frequency范围 | 50Hz~30MHz |
| Accuracy | ±0.05% : 50Hz~1kHz, ±0.02% : 1kHz~30MHz |
| 测量Sensitivity | > 2div |
| LCD | |
| Show | VOLT/div, TIME/div, The X-Y pattern, Frequency |
| Backlight color | Orange |
| CRT | |
| Form | A 6-inch rectangular shape with graduated lines |
| Phosphorescent quality and accelerating voltage | 31页 |
| Effective screen size | 8 × 10 div (1 div = 10mm (0.39in)) |
| The trajectory of rotation | Adjustable |
| Power supply |
|
| Linear voltage | 交流115V, 230V±15% |
| Frequency | 50Hz/60Hz |
| Storage environment | |
| Temperature | -10℃ to 70℃ |
| Humidity | 70percentRH (Max) |
| Attachment | |
| Standard configuration | User manual x 1 |
| Power supply线 x 1 | |
| Probe x 2 | |
| Size and weight |
|
|
|
310(W) x 150(H) x 455(D) mm |
| About 8.2kg | |
