Your Position:Home > Products Center > 固纬Gwinstek > GRF-1300 Radio frequency communication experiment

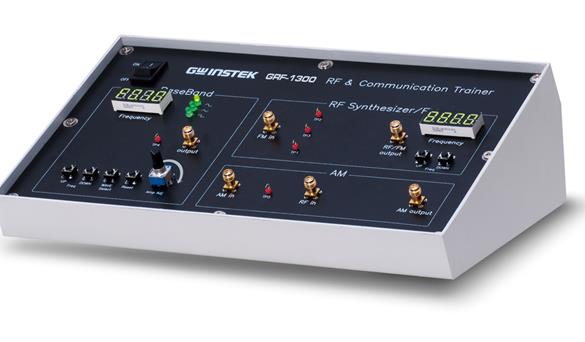

  • GRF-1300 Radio frequency communication experiment

    Model:GRF-1300

    Brand:固纬Gwinstek

    Introduction:Waveform support: sine wave/square wave/triangular wave base frequency range: 0.1 ~ 3MHz RF frequency range: 870 ~ 920MHz AM/FM modulation design 5 switches and test points can simulate 8 debugging courses Learn USB interface with remote program control

  • Specifications
    Function Project Specifications
    Baseband Waveform 正弦波,方波,三角波

    Frequency range 0.1~3MHz;Step: 10kHz

    Amplitude ≧1.5Vpp

    Harmonic distortion ≦-30dBc
    RF/FM generator Frequency accuracy ±0.15MHz

    Adjustable range ≧45MHz (870M ~ 920MHz);Step: 1MHz

    Power range ≧-15dBm
    FM Maximum frequency deviation >3MHz
    AM Peak difference ≧-18dBm
    Interface USB Device
    尺寸&重量 165(W)*155(H)*90(D)mm, 1.2kg
