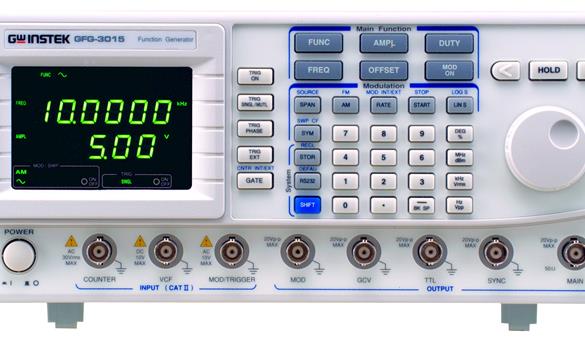

The frequency ranges from 0.01Hz to 15MHz
Maximum frequency resolution up to 10mHz
Setting frequency and setting amplitude can be disyed simultaneously
Built - in 6-digit counter can count frequencies up to 150MHz
Output waveform includes: sine wave, square wave, triangle wave, Ramp, pulse wave, AM, FM, scan function, trigger output and Gate/Burst
VCF for 100:1 external frequency control
INT/EXT, AM/FM Modulation
GCV synchronous output function
Continuously adjustable DC drift control
Provides SYNC output function
LIN/LOG scan mode
Output overload protection function

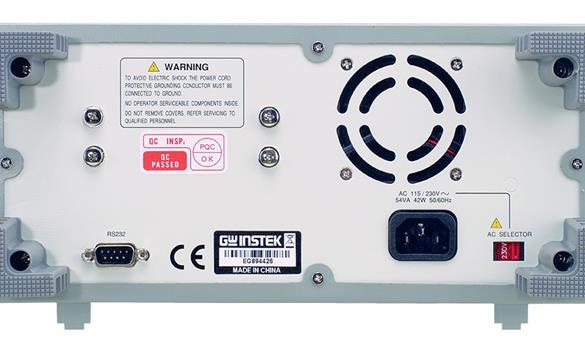

Built-in RS-232C communication interface
| Specifications | ||
| 主要Specifications | ||
| Output waveform | Sine wave, square wave, triangle wave, ±Ramp, pulse wave, AM, FM, scanning function, trigger, Gate, Burst | |
| Frequency range | A total of 8 gears from 10mHz to 15MHz (automatic selection) | |
| Frequency resolution | 15MHz~150kHz(100Hz);1.5MHz~15kHz(10Hz); 150kHz~1.5kHz(1Hz);15kHz~150Hz(0.1Hz);1.5kHz~15Hz(10mHz); 150Hz~1.5Hz(10mHz);15Hz~0.15Hz(10mHz); 1.5Hz~0.01Hz(10mH) | |
| Frequency error | 0.02percent five figures | |
| Output impedance | 50Ω ±10% | |
| Output amplitude range | 10.00V~0.01V(plus 50Ω load) 4 amplitude; |Vac peak| |Vdc|=5V; Resolution: 10mV (10.00V~0.01V) | |
| Output amplitude error | ≤ 3percent ± 5 digits at 10Hz~1MHz; ≤ 10percent ± 5 digits at 1MHz~15MHz | |
| Unit of amplitude | Vpp, Vrms, dBm | |
| Dc drift | -5V~ 5V(plus 50Ω load); The resolution is 10mV | |
| Dc driftError | Minimum amplitude ≦3percent ± 3 digits | |
| Cycle control | 80 percent: 20 percent - 80 percent to 1 MHZ. The resolution is 1percent | |
| Periodic resolution | In the 50percent period, ≦1percent ~ 1MHz | |
| The monitor | 双显示7段The monitor, 频率:6位数, 振幅:4位数 | |
| Sine wave | ||
| Distortion degree | ≦ 0.5%(-46dB) THD from 10Hz to 100kHz ;≦-30dBc to 15MHz (spec. applied form 1Vpp~10Vpp) | |
| Triangular wave | ||
| Linear error | At 100Hz full scale output 1percent | |
| Square wave | ||
| Asymmetry | ±1% of period + 3ns | |
| Rise/fall time | <18nS | |
| SYNC Output | ||
| Group resistance | 50Ω±10% | |
| Level | Open loop > 1Vpp | |
| Modulation characteristic | ||
| Type | 调幅、调频、扫描、触发(输入/输出)、门控或突发(按触发类型实现)—— | |
| Waveform | 正弦，正方形，三角形，斜坡或可变对称脉冲 | |
| Frequency scale range | 10mHz~10kHz in 3 Frequency Range (automatic switching) | |
| Frequency scaling error | 5percent ± 1 digit | |
| Frequency proportional resolution | 10.0kHz~0.1kHz(100Hz);99Hz~1Hz(0.1Hz);0.99Hz~0.01Hz(0.01Hz) | |
| Symmetry | 90percent:10percent:90percent ; Resolution: 1percent | |
| SymmetryError | ±1 digit (≦±1percent) | |
| 输出Level | When adding 10KΩ, ≧ 1Vp-p | |
| Sine waveDistortion degree | 10Hz~10kHz ≦1% | |
| Amplitude modulation | ||
| Depth | 0~ | |
| Adjust the frequency | 0.01Hz~10kHz(INT) DC~1MHz(EXT) | |
| Carrier -- 3dB bandwidth | <100Hz to >5MHz | |
| External input sensitivity | 100percent adjustment ≦10Vp-p | |
| Frequency modulation | ||
| Error | 0 ~ ±5% | |
| Adjust the frequencyThe proportion of | 0.01Hz~10kHz(INT) DC~50kHz(EXT) | |
| External input sensitivity | ≦5Vpp for 15% deviation | |
| Scanning feature | ||
| Scan range | 15MHz~150kHz ; 1.5MHz~15kHz ; 150kHz~1.5kHz ; 15kHz~150Hz ; 1.5kHz~15Hz ; 150Hz~1.5Hz ; 15Hz~0.15Hz ; 1.5Hz~0.01Hz | |
| 扫描宽度 | >100:1 (in same frequency range) | |
| Scanning ratio | 0.01Hz~10kHz | |
| Symmetry控制 | 90percent:10percent:90percent ; Resolution: 1percent | |
| Mode | Linear/Log scan | |
| Scan output | 0 to ≧-5Vp-p into 10KΩ | |
| Trigger characteristics | ||
| Start/cut off phase range | 80°~90° | |
| The proportion of | 0.1Hz~10kHz | |
| Frequency range | 0.1Hz~1MHz (Useful to 10MHz) | |
| 外部触发Frequency range | DC~1MHz, 相容于TTL输入Level | |
| Gate或Burst | Implement by trigger setting | |
| VCF | ||
| The scope of | 100:1(0 to 10V±1) | |
| Input straightness | <0.5% to 1MHz,<5% to 10MHz | |
| Input impedance | 10kΩ | |
| GCV output | ||
|
|
Different frequencies produce voltage between 0.2V and 2V | |
| Frequency counter | ||
| INT/EXT | Optional | |
| The scope of | 5Hz~150MHz EXT | |
| The resolution | Time base accuracy ±1 digit | |
| Time base | ±20ppm(23℃±5℃) after 30 minutes of heating | |
| The resolution | The resolution: 100nHz for 1Hz 及 0.1Hz for 100MHz | |
| Input impedance | 1MΩ // 150pF | |
| Sensitivity | ≦35Vrms(5~100MHz);≦45Vrms(100MHz~150MHz) | |
| Memory | ||
| Store/call | 10组Memory供面板设定Store/call | |
| Interface | RS-232C | |
| Use the power supply | AC 115V/230V±15%, 50/60Hz | |
| Attachment | ||
|
|
Power cable x 1, Operation manual x 1, test cable GTL-101 x 2 | |
| Size and weight | ||
|
|
290(宽)× 142(高)× 460(深)毫米，5公斤 | |
