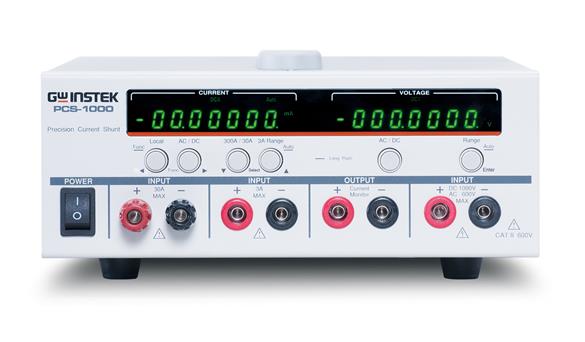

PCS-1000 shunt meter --Beijing Yingyehua Technology Co., LTD

Specifications
Dc voltage characteristics
Precision	Gear position		23℃±5℃(per year)	Temperature coefficient /℃
	200.0000mV		0.0050+0.0035	0.0005+0.0005
	2.000000V		0.0050+0.0010	0.0005+0.0001
	20.00000V		0.0050+0.0010	0.0005+0.0001
	200.0000V		0.0050+0.0010	0.0005+0.0001
	1000.000V		0.0050+0.0020	0.0005+0.0001
	±(%读值+%Gear position);电压输入电阻:有直流电压Gear position10MΩ
Dc current characteristics
Precision	Gear position	Load voltage	23℃±5℃(per year)	Temperature coefficient /℃
	30.00000mA	<0.4V	0.01+0.005	0.001+0.002
	300.0000mA	<0.5V	0.01+0.005	0.001+0.002
	3.000000A	<0.8V	0.01+0.005	0.001+0.002
	30.00000A	<0.8V	0.01+0.005	0.001+0.002
	300.0000A	<0.8V	0.02+0.005	0.001+0.002
	±(%读值+%Gear position)
True RMS AC voltage characteristics
Precision	Gear position	Frequency	23℃±5℃(per year)	Temperature coefficient /℃
	200.0000mV	45Hz-2KHz	0.5+0.05	0.005+0.005
	2.000000V	2KHz-10kHz	1.0+0.05	0.005+0.005
	20.00000V	10kHz-20kHz	2.0+0.10	0.005+0.005
	200.0000V			0.005+0.005
	600.000V			0.005+0.005
	±(%读值+%Gear position)
True RMS AC current (AC DC) characteristics
Precision	Gear position	Frequency	23℃±5℃(per year)	Temperature coefficient /℃
	30.00000mA			0.03+0.006
	300.0000mA	45Hz-2KHz	0.5+0.05	0.03+0.006
	3.000000A	2KHz-10kHz	1.0+0.05	0.03+0.006
	30.00000A	45Hz-400Hz	0.5+0.05	0.03+0.006
	300.0000A	45Hz-400Hz	0.5+0.05	0.03+0.006
	±(%读值+%Gear position)
电流监控器Precision
The scope of	Diverter	直流Precision	交流Precision≤400Hz	输入DC/ACRMS
	10Ω	0.01%	0.10%	30mA
	1Ω	0.01%	0.10%	300mA
	0.1Ω	0.01%	0.10%	3A
	0.01Ω	0.01%	0.10%	30A
	0.001Ω	0.02%	0.10%	300A
Power supply	100V/120V/220V/240V±10%
Power supplyFrequency	50/60Hz
Operating environment	0℃~50℃,80percentR.H. At 40℃
Power loss	Max35VA
尺寸&重量	210mm(W)x80mm(H)x390mm(D); About 6kg
