Features:
Using cooling dehumidification, can quickly dehumidify
The capacitive humidity sensor can measure humidity with high accuracy even in the low humidity range
Suitable for storing all kinds of samples, precision instruments and semiconductor related products that need stable humidity control
Energy saving design that automatically reduces power consumption near the set humidity and within the low humidity range
The frozen water on the heat sink can be automatically thawed by the small fan, so the moisture can be inhibited by the rise of the temperature of the cooling fan to blow into the box
Specifications:
Dehumidification mode: Peltier module for cooling and dehumidification
Thawing mode :DC fan blowing thawing
Temperature setting range: 5 ~ 50%RH (1% lining)
Reach the humidity (12h) : N-SFD-CB/ about 15percentRH,N-SFD-SB · WB/ about 20percentRH(reference value: empty in the box,25℃,60percentRH)
Humidity disy accuracy :±6percent※ Ambient temperature is 25℃
Humidity control method: through the relative humidity digital input ON/OFF control
Temperature and humidity sensor: temperature/cover temperature sensor, humidity/capacitive humidity sensor
Material: main body/melamine paint steel te, front/glass
Low casters: N - SFD - SB/phi 100 mm hard rubber with X2 brakes (a), N - SFD - WB / ø 50 mm hard rubber with X2 brakes (a)
Accessory partition (made of steel te):N-SFD-CB / 2 pieces,N-SFD-SB · WB / 3 pieces
Specification 2:
Partition installation spacing :N-SFD-CB/30mm,N-SFD-SB · WB/60mm
Partition bearing load: about 40kg/ piece (uniform load)
Power supply :AC100V 50/60Hz
Power consumption: normal /90W, energy saving /55W
Driving noise (1m in front): normal running time/about 51dB, energy saving running time/about 41dB
Power supply Note :
该商品电源为AC100V,使用时请务必搭配100V变压器使用.
Relevant transformer products, please refer to Chinese 2019 No. 477 page /2017 No. 884 page or directly consult our company
【 Specification Sheet 】
| Picture | The number is | Model number | Overall dimension (mm) | Internal dimension (mm) | Roller | Sales
Packing |
RMB(including tax) | Beijing inventory | Shanghai inventory | Japanese inventories | Refer to the delivery date | Query NO. | Optional quantity |
|
2-7431-31 | N-SFD-CB | 450×400(496)×900 | 410×365×840 | None | One | 10,700.00 | 0 | 0 | 5 |
|
**13 | - |
|
|

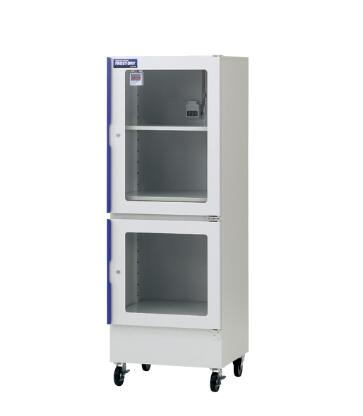

2-7431-32 | N-SFD-SB | 600×550 (646)×1700 | 560×515×1515 | With | One | 15,200.00 | 0 | 0 | 5 |
|
**13 | - |
|
|

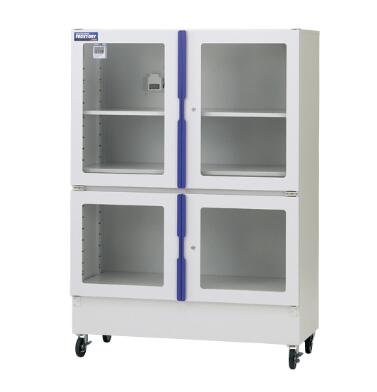

2-7431-33 | N-SFD-WB | 1260×550 (646)×1652 | 1160×515×1515 | With | One | 22,900.00 | 0 | 0 | 2 |
|
**13 | - |
|
|

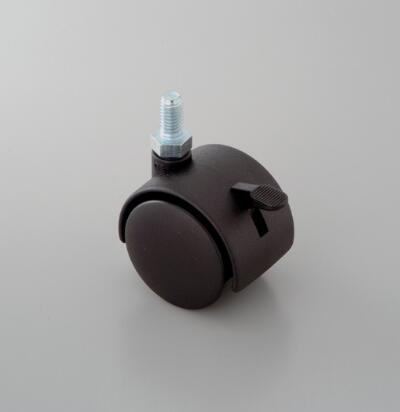

1-3160-03 | For SPB-1/2 | φ40 mm nylon rolling wheel | - | - | 1 case (of 4) | 350.00 | 0 | 0 | 6 |
|
**13 | - |
※ It will take about 18 days to send from Japan if Japan is in storage
