Features:

＜TXN800WAL＞

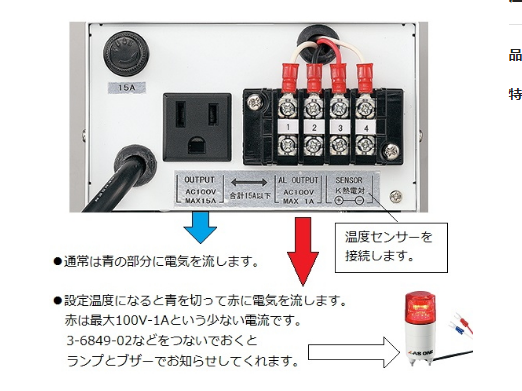

In addition to forcing off abnormal temperature, also output alarm power supply.
Alarm output is 100V / 1A specification, which can realize various combinations of warning lights, buzzers, etc.
Separate use of high heat resistance sensor, up to 1000℃ control.
< LED warning light >
Use Y terminal specifications that can be connected to the terminal block without processing.
Input AC100V, through the rotary light notification alarm.
With buzzer, can be in the light of the buzzer warning.
Use the optional mounting components, can be fixed on the wall or metal.
＜TE-VC＞
The terminal connection can be converted into a 2-terminal socket.
＜TE-KC＞
The terminal connection can be converted into a miniature connector.

Specifications:

Body
Size :130×160×84mm
Power supply :AC100V50/60Hz
Connection capacity :AC100VMAX15A(including alarm output)
Alarm output :100VMAX1A
Temperature control mode: main control ON/OFF
Output control mode: relay contact output
Safety function :15A fuse
Power cord: about 1.8m(3P plug)
Weight: about 1.5kg
Temperature disy accuracy :±2°C or the greater of the indicated value ±(0.3percent 1digit)
Sensor type :K thermocouple
Set temperature :-100~ 1000°C
Setting mode :UP/DOWN key
Connection terminals: Control output /3P socket, alarm output/sensor input /M3.5Y terminal station
Accessories :K thermocouple round terminal specifications (corresponding to 180°C), cable length: about 2m
※ The included K thermocouple sensor is standard. Please prepare another sensor for high temperature

【 Specification sheet 】

Picture	Number	Model	Sales Packaging	RMB(tax included)	Beijing inventory	Shanghai inventory	Japanese inventory	Refer to delivery date	Query NO.	Purchase quantity
	3-6824-01	TXN800WAL(Ontology)	1	3,900.00 3,315.00	0	0	Storage reservation 63(delivery date undetermined)	138 days or so	**12	-

※ It takes about 18 days to ship from Japan in case of storage in Japan
