Features:

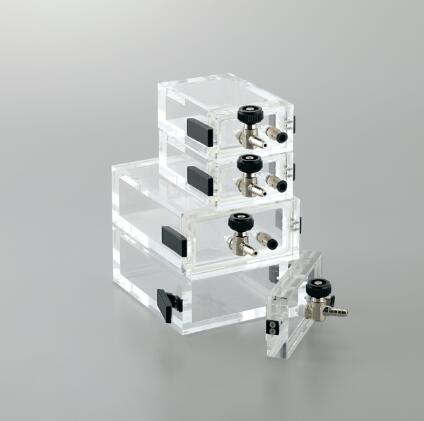

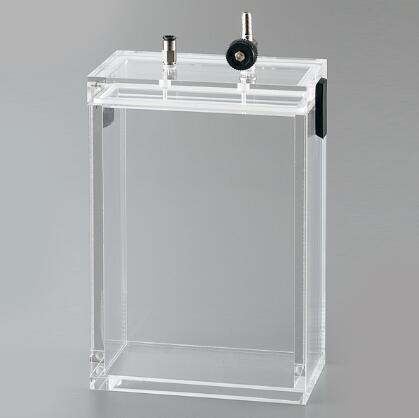

Small, light weight, easy to carry vacuum moisture-proof box.
Support vacuum gas discement.
Square, can be stacked to use.
Specifications:
材质：主体／透明PMMA（丙烯酸树脂）、 密封垫／NBR（圆形）、硅橡胶（方形）
Allowed vacuum: about 133Pa
Valve: hose connector outer diameter / φ8mm
Pipe joint: Outer diameter φ6mm tube adaption · Single contact joint type
■ Recommended vacuum pump :
C1-671-06 DA-20D（P.248）
【 Specification sheet 】
| Picture | Number | Model | Internal dimensions (mm) | Sales
Packaging |
RMB(tax included) | Beijing inventory | Shanghai inventory | Japanese inventory | Refer to delivery date | Query NO. | Purchase quantity |
|
2-4920-11 | Type 30 | φ60×30 | 1 | 1,200.00 | 0 | 0 | 18 |
|
**13 | - |
|
|
2-4920-12 | Type 60 | φ60×60 | 1 | 1,240.00 | 0 | 0 | 19 |
|
**13 | - |
|
|
2-4920-13 | Type 100 | φ60×100 | 1 | 1,340.00 | 0 | 0 | 29 |
|
**13 | - |
|
|
2-4920-14 | Type 200 | φ60×200 | 1 | 1,420.00 | 0 | 0 | 5 |
|
**13 | - |
|
|
2-4920-15 | Type 300 | φ60×300 | 1 | 1,580.00 | 0 | 0 | 6 |
|
**13 | - |
|
|
2-4920-07 | Fang 90 | 60×25×90 | 1 | 1,460.00 | 0 | 0 | 65 |
|
**13 | - |
|
|
2-4920-08 | Fang 140 model | 95×40×140 | 1 | 2,070.00 | 0 | 0 | 50 |
|
**13 | - |
|
|
2-4920-09 | 方Type 200 | 135×60×200 | 1 | 3,740.00 | 0 | 2 | 24 |
|
**13 | - |
※ It takes about 18 days to ship from Japan in case of storage in Japan
※ Catalog Published page: Azovan Experimental Instruments and consumables catalog 2019 No. 232
※ Catalog Publication page: Azovan Experimental Instruments and consumables catalog 2017 No. 518
