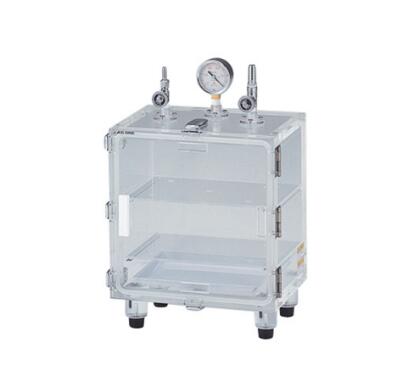

Specifications:

Allowed vacuum: 1Torr(about 133Pa)
Material: body/transparent reinforced PMMA(acrylic resin)(te thickness: 20mm), valve/vacuum gauge mounting part/PC(polycarbon resin)
Capacity: 12l
Shelf size: 257×171×4mm
Shelf layer: 2 layers (shelf interval is 100mm)
Shelf load: 2kg(average load)
Weight: 11kg
Specifications:无插座

Accessories :
Vacuum valve: small/outer diameter φ8mm· Large/outer diameter φ14mm(1 each)
Vacuum gauge ×1
Shelf board ×2
Silicone tray ×1

■ Recommended vacuum pump :
C1-671-06 DA-20D(P.248)
CC-2940-01 GLD-N05(P.250)

【 Specification sheet 】


Number

Model

外形尺寸#※#(mm)

Internal dimensions (mm)

Sales Packaging

RMB(tax included)

Beijing inventory

Shanghai inventory

Japanese inventory

Refer to delivery date

Query NO.

Purchase quantity

1-068-01

VL type

300×222×300

260×180×260

1 set

7,800.00

0

0

87

**15

-

※ It takes about 18 days to ship from Japan in case of storage in Japan

※ Dimensions do not include protrusions.

※ Catalog Published page: Azovan Experimental Instruments and consumables catalog 2019 No. 229

※ Catalog Publication page: Azovan Experimental Instruments and consumables catalog 2017 No. 515
