Features:

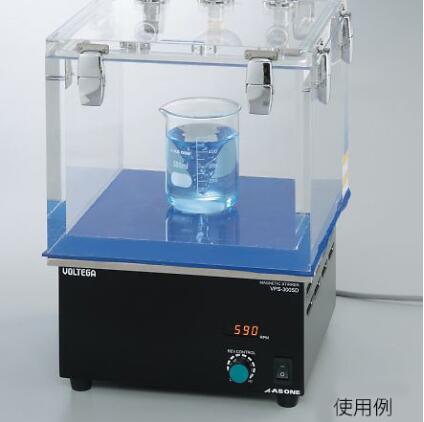

High function vacuum drying chamber suitable for VOLTEGA300 specification, which can be stirred while vacuuming.
Use a good sealing silicone seal, do not need grease.
With non-slip pad instead of rubber feet to prevent sliding from the top te.
Can also be used as an ordinary vacuum drying oven.
Can be used as a drying oven, but also as a defoaming device.

Specifications:

Dimensions (mm):300×300×302(* valve, except instrument)
Internal size (mm):260×260×260
Material: Transparent reinforced PMMA(acrylic)(te thickness :20mm), valve and vacuum meter installation parts/polycarbonate
Allowable vacuum: about 133Pa
Weight: about 11kg
Vacuum valve :φ8/φ14mm hose connector × 1 -- each
Vacuum gauge :-0.1MPa
Accessories :SORBO cushion (1-6888-01)

【 Specification sheet 】


Number

Model

External dimension (mm)※

Inside dimensions (mm)

Sales Packaging

RMB(tax included)

Beijing inventory

Shanghai inventory

Japanese inventory

Refer to delivery date

Query NO.

Purchase quantity

4-440-01

VP type

300×300×302

260×260×260

1

5,760.00

0

0

3

**12

-

※ It takes about 18 days to ship from Japan in case of storage in Japan
