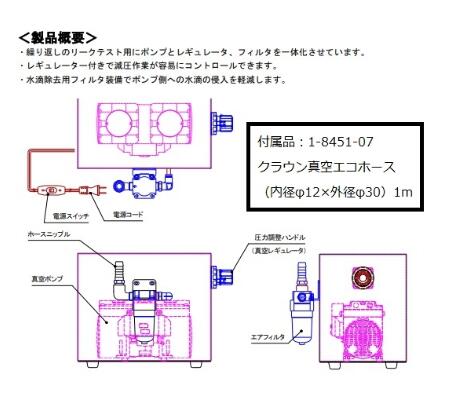

Features:

Leak testing is easy.
泵和调节器、过滤器形成一体,用于泄漏测试.
With a regulator, you can easily manage decompression operations.
Water drop filter equipment is used to reduce water drop intrusion into the pump side.

Specifications:

Size (mm):200×230×191(except knob protruding part)
Weight (kg): about 4.2
Set pressure range: about -0.093MPa(regulator monomer capacity -0.1MPa pump arrival pressure 0.0065MPa)
Built-in pump: diaphragm type dry vacuum pump
Arrival pressure :6.65kPa(pump unit capacity)
Exhaust speed :6/7(50/60Hz)L/min(pump unit capacity)
Power supply :AC100V50/60Hz0.4A
Interface: Outer diameter φ14mm hose connector
Accessories: Vacuum hose 1m(outer diameter φ14mm hose connector)×1

Power supply Note :
The commodity power supply is AC100V, please be sure to use with 100V transformer.
Related transformer products, please refer to Chinese 2019 No. 477 page /2017 No. 884 page or directly consult our company.

【 Specification sheet 】

Picture	Number	Model	Sales Packaging	RMB(tax included)	Beijing inventory	Shanghai inventory	Japanese inventory	Refer to delivery date	Query NO.	Purchase quantity
	3-6773-02	VRT-PS	1	9,930.00 8,441.00	0	0	2		**13	-

※ It takes about 18 days to ship from Japan in case of storage in Japan
