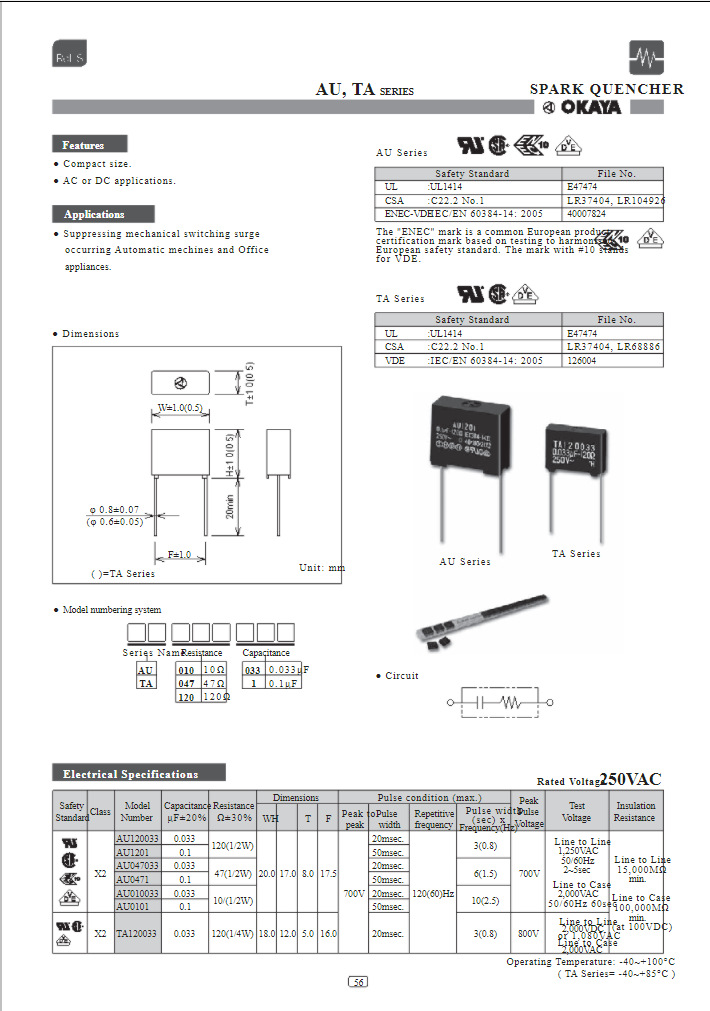

Circuit protection element
200V type
Spark extinguisher
RoHS-- compliant
UL,cUL,CSA and VDE(ENEC) compliant for 250Vac
Compact

Resistance: 120Ω±30percent
Capacitance: 0.1µF±20percent
Pulse condition (maximum) : (
Peak-to-peak value) 700V Max. (pulse width) Max. 50 ms
(Repetition rate)120Hz max.(pulse width x frequency)3max.
Rated voltage: 250Vac
Peak pulse voltage: 700V test
Voltage: (--)
Wire to wire) 1250Vac 50/60Hz 2 to 5 seconds
(Wire pair housing) 2000Vac 50/60Hz 60 seconds
Insulation resistance: (--)
Wire to wire) 15000MΩ Minimum value.
(Line to Case)100000MΩmin.(100Vdc)
Operating temperature: -40 to +100℃

(W)20.0mm， (H)17.0mm， (T)8.0mm， (F)17.5mm——
