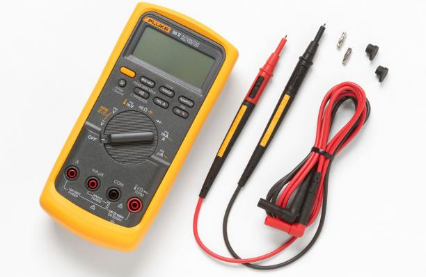

Product specifications: Fluke 88V auto digital multimeter
Technical index | ||
DCV | Maximum voltage | 1000 V |
Precision | ±(0.1% + 1) | |
Optimal resolution | 0.01 mV | |
ACV | Maximum voltage | 1000 V |
Precision | ±(0.5% + 2) | |
Ac bandwidth | 5 kHz | |
Optimal resolution | 0.01 mV | |
Direct current | Maximum current | 10 A |
电流Precision | ±(0.4 % + 2) | |
Optimal resolution | 0.001 mA | |
Ac current | Maximum current | 10 A |
电流Precision | ±(1.2% + 2) | |
Optimal resolution | 0.001 mA | |
Resistance | Resistance | 50 MΩ |
Precision | ±(0.4% + 1) | |
Optimal resolution | 0.1 Ω | |
Capacitance | Capacitance | 9,999 µF |
Precision | ±(1% + 2) | |
Optimal resolution | 0.01 nF | |
Frequency | Frequency | 200 KHz |
Precision | ±(0.005% + 1) | |
Optimal resolution | 0.01 Hz | |
Duty cycle | Duty cycle | 99.9% |
Precision | 2percent/kHz In the range of 0.1percent | |
Optimal resolution | 0.1% | |
Temperature measurement | -200.0 °C – 1090 °C
-328.0 °F -- 1994.0 °F,1.0percent without probe |
|
80 BK temperature probe | -40 °C – 260 °C
-40 °F -- 500 °F,2.2 °C or 2percent, whichever is larger |
|
Conductance | Conductance | 60.00 nS |
Precision | ±(1.0% + 10) | |
Maximum resolution | 0.01 nS | |
Scope of work | Operating temperature | -20 °C – 55 °C |
Storage temperature | -40 °C – 60 °C | |
Fuselage specifications | 5.2 x 9.8 x 20.1 cm (2.06 x 3.86 x 7.93 in)
624 g(22 oz) |
