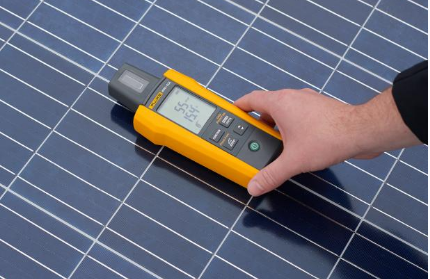

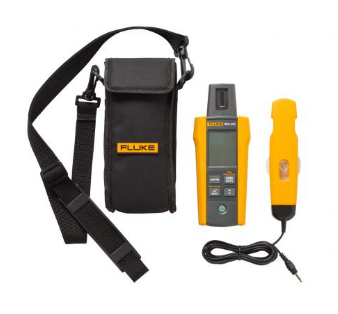

Product specification: Fluke IRR1 SOL solar irradiance meter
Technical index
| Irradiation | |
| Measuring range | 0To 1400 W/m² |
| Resolution | 1 W/m² |
| Measurement accuracy | ±（ 5 % + 5 Bit) |
| Temperature measurement | |
| Measuring range(°C) | -22 °FTo 212 °F （ -30 °C To 100 °C ） |
| Resolution | 0.2 °F (0.1 °C) / 1 °F（ >100 °F Under the condition of) |
| Measurement accuracy | ±2 °F (±1 °C（ ) 14 °F To 167 °F (-10 °C - 75 °C) Under the condition of)、 |
| ±4 °F (±2 °C（ ) -22 °F To 14 °F (-30 °C - -10 °C) | |
| And167 °F To 212 °F (75 °C - 100 °C) Under the condition of) | |
| 注：Temperature measurement响应时间：约 30 Seconds. |
|
| Dip Angle | |
| Measuring range | -90°To +90° |
| Resolution | 0.1° |
| Measurement accuracy | ± 1.5（ ° -50° To +50° Under the condition of)、 ±2.5 （ ° -85° To -50° And +50° To +85° Under the condition of) |
| ±3.5（ ° -90° To -85° And +85° To +90° Under the condition of) | |
| Compass | |
| Measuring range | 0°To 360° |
| Resolution | 1° |
| Measurement accuracy | ± 7° |
| 注：a) The measured values are applicable to the equipment inclination range of -20° And +20° To水平的情况.当出该范围时, LCD It is shown on “---” . | |
| b)结果被称为磁北. | |
| Temperature | |
| IRR1-SOL的工作Temperature | -20 °CTo 50 °C (Humidity <80 % ), no condensation |
| 80PR-IRR的工作Temperature | -30 °CTo 100 °C |
| 存放Temperature | -30 °CTo 60 °C (Humidity <80 % ） |
| Altitude | 0 mTo 2000 m |
| 电磁兼容性(EMC) | |
| South Korea (KCC) | A类设备（工业 广播And通讯设备 ） A Class: This type of equipment meets the requirements of industrial electromagnetic wave equipment, the seller or user should take note of this. This device is intended for use in a business environment, not a home environment |
| 美国(FCC) | 47 CFR 15 B子部分.按照第 15.103 This product is deemed to be exempt equipment |
| Protect | |
| IP防护等级 | IP40 |
| 电能AndBattery寿命 | |
| Battery | 4节 AA 碱性Battery |
| Battery寿命（典型值） | 50小时（ >9000 Reading) |
| Automatic shutdown | 30分钟 |
| Size | |
| 长x The width x High | 5.90 x 3.14 x 1.37 in (150 x 80 x 35 mm) |
| The weight of | 0.5 lb (231 g) |
