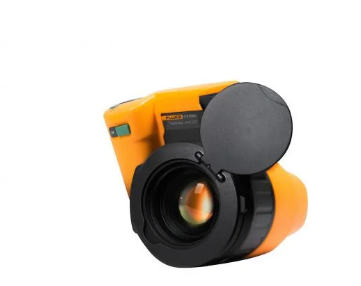

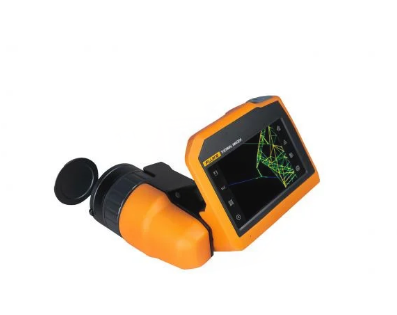

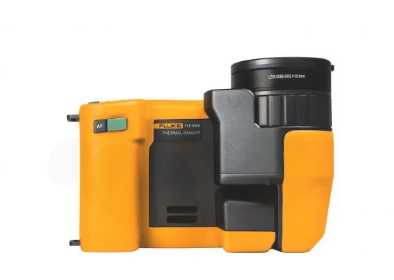

Product specifications: Fluke TiX1060 infrared thermal imager
|
|
|
| Infrared resolution | 1024x768 |
| Superpixel technology | There is (enhanced to 2048x1536 pixels) |
| Thermal sensitivity (NETD) | <30mK@30℃ |
| Field Angle (FOV) | 25°x19° (standard lens) |
| Spatial resolution (IFOV) | 0.43mrad |
| Digital zoom | 1~ 35x continuous zoom |
| Detector type | Focal ne array (FPA), uncooled infrared detector |
| Response band | 7~14μm |
| Lens aperture | F1.0 |
| Lens recognition | Automatic |
| Minimum focusing distance | 0.5m |
| Focus | Automatic/手动/电动 |
| Frame rate | 13Hz full window,25Hz 1/2 window |
|
|
|
| Temperature measuring range | -40℃~700°C（-40℃~150℃;0℃~350℃;0℃~700℃）
High temperature expansion 2000℃ (300℃-2000℃) |
| Temperature measurement accuracy | 在常温操作环境下,-10 ℃~150 ℃ Temperature measuring range,准确度 ±1 °C 或读数的1 % （以较大值为准）
其他Temperature measuring range,准确度 ±2 °C 或读数的2 % （以较大值为准） |
| 高低温Automatic捕捉 | There is |
| Reference temperature compensation | There is,全屏与测温标识温度显示为实际温度与固定温度差值 |
| Automatic温差计算 | The difference between thermometric marks or the difference with fixed reference temperature is calculated |
| Point temperature measurement | 10个可移动Point temperature measurement |
| Regional temperature measurement | 5 temperature measuring areas (square temperature measuring area or circular temperature measuring area) |
| Line temperature measurement | 10条可移动Line temperature measurement |
| Temperature measurement method | 区域内能设置温、低温,Automatic定位/低温度点 |
| Fix the Settings | Emissivity, reflection temperature (background temperature), transmittance, humidity, ambient temperature, test distance, atmospheric transfer correction |
| Full screen emissivity correction | 0.01~1.00, step size 0.01, built-in common material emissivity table |
| Zone emissivity correction | There is |
| Native analysis | Carry out point, region and line temperature analysis on the saved thermogram |
| Analysis software | Standard software SmartView IR |
| Support language | Simplified Chinese/English |
|
|
|
| Disy type | OLED touch screen with 170° viewing range |
| Disy size | 5.5 inches |
| Disy contrast | 100000：1 |
| Disy resolution | 1920x1080 pixels,1080P ultra HD disy |
| Digital image enhancement | There is |
| Image overlay information Settings | Support, you can set the highest temperature, lowest temperature, average temperature, full screen emissivity, reflection temperature and other information disyed on the image |
| Temperature identification disy setting | Support, each temperature identifier can be set separately, such as emissivity and other information |
| Built-in digital camera | 500万像素,AutomaticFocus |
| LED lights | There is |
| Picture in picture | Support |
| The color palette | 30 (15 standard,15 reverse) |
| Manual image adjustment | There is |
| Automatic图像调节 | There is |
| Minimum temperature wide range (manual mode) | 2℃ |
| 小温宽范国(Automatic模式下) | 4℃ |
|
|
|
| Full radiation infrared video recording | Record to thermograph and PC |
| 全辐射热像视频录制（Frame rate可调） | 可调Frame rate范围1~12Hz |
| Full radiation infrared visual data stream | Trial USB 2.0 transfer |
| Non-radiative infrared video streams | Using HDMI transmission |
| Automatic捕捉 | Interval of 1 second to 60 minutes |
|
|
|
| Color alarm (isotherm) | There is |
| Audible alarm | High temperature alarm Low temperature alarm |
| Automatic命名热像图 | Support二维码 |
| Phonetic notes | There is,单张图片Support200秒Phonetic notes |
| Notes to the text | Simplified Chinese/English/数字 |
| Note to visible picture | There is |
|
|
|
| Image browsing | Thumbnail view navigation and view selection |
| Storage medium | Built-in 16GB flash memory 128GB high-speed SD card |
| SD card | There is |
| Infrared image file format | 标准JPEG格式, 包含测量数据, 满足国网红外热像仪数据格式校验要求 |
| Video file format | .IS5 |
| Visible image file format | 标准JPEG格式, Automatic关联红外图像 |
| Audio | There is |
| Transmission interface | USB Type-C、HDMI、SD card、蓝牙 |
| Bluetooth transmission | There is,把保存的文件可以通过蓝牙传递给PC端. |
| GPS positioning | 在室外将GPS位置信息Automatic添加到每张静态图像中 |
| Remote disy view | There is,在PC或显示终端上查看热像视频流
(Connect to Smartview IR software on PC via USB, connect to disy terminal via HDMI) |
| Remote control operation | There is, 通过SmartView IR软件 |
| USB function | 向PC传输全辐射热像视频流;读取热像仪内部闪存数据;读取SD card数据 |
| USB | USB 2.0 |
| The antenna | Built-in |
|
|
|
| Battery type | 3 rechargeable lithium batteries |
| Battery operating time | Continuous service time > 3.5 hours (ambient temperature 25℃) |
| Weight of the machine | 1822g (including battery) |
| Equipment size | 151 mm x 214 mm x 92 mm |
| Rotate the lens | 180°可Rotate the lens |
| Electromagnetic compatibility (EMC) | IEC61326-1,GB/T 17626.2-2006,GB/T 17626.8-2006 |
| Anti-radio interference | FCC Part 15.247 |
| Tripod mounting base | UNC 1/4 "-20 Standard tripod mounting thread |
| Warranty period | Main engine 2 years, probe 10 years |
| It is suggested that the quasi-cycle | Two years (normal operation and aging assumed) |
