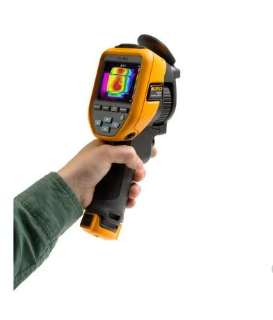

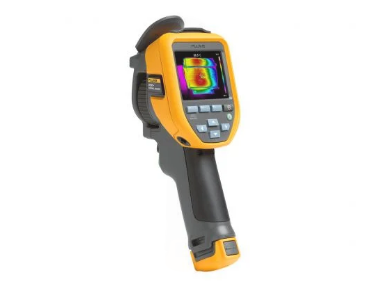

Product specification: Fluke TiS55 infrared thermal imager
| Core function | TiS55+ |
| Infrared resolution | 256 x 192 (49,152 pixels) |
| IFOV | 1.91 mRad |
| Field Angle | 28° x 20° |
| Focusing system | Manual focus and fixed focus length (focus position is located at 1 meter) |
| Wireless connection | Yes, you can connect to PC,iPhone® and iPad® (iOS 4s and later),Android™ 4.3 and later, and WiFi and LAN (if available) |
| Compatible with Fluke Connect applications | Yes, Connect the thermal imager to your smartphone and automatically take images and upload them to the Fluke Connect app for saving and sharing |
| Fluke Connect Assets Optional software | With *, assign images to assets and create work orders. Easily compare measurement types, whether mechanical, electrical or infrared images, in the same location |
| Asset tag | Scan the QR code and Fluke Connect™ automatically organizes and archives thermal images |
| Infrared visible light fusion technology -- IR-Fusion | Continuous fusion,0 percent to 100 percent. Adds visual detail to infrared images |
| Picture in picture (PIP) | There is |
| The disy screen | 3.5 & quot; (8.9 cm diagonal) Touch screen 640 x 480 LCD |
| Ergonomic design | Designed for one-handed use |
| Thermal sensitivity | 40mk |
| Level and span | Smooth auto and manual scaling |
| Fast automatic adjustment in manual mode | There is |
| Minimum range (manual mode) | 3°C (4.5 °F) |
| Minimum range (Automatic mode) | 5°C (9.0 °F) |
| Built-in digital camera (visible light) | 640 x 480 |
| Frame rate | 9 Hz or 27 Hz models |
| Dew point calculation | None |
| Data storage and image capture | |
| Memory | About 500 images |
| External storage | ≥4 GB SD card (> 1000 images) |
| Image capture, view, save mechanism | One - hand image capture, view and save functions |
| Image file format | Visible BMP or JPEG or full infrared is2 |
| Memory查看 | There is |
| Software | Fluke Connect Software - 可访问 Fluke Connect 的全面分析和报告Software |
| Analyze and store heat map data on a PC | There is |
| 使用 Fluke Connect Software导出文件格式 | is2、BMP、GIF、JPEG、PNG、TIFF |
| Phonetic notes | There is,通过蓝牙音频耳机配置文件 (HSP) 连接外部设备,长可录音 60 秒. |
| IR- Image annotation | There is.多可选 1 幅额外捕捉的可见光图像包含于 IS2 文件中. |
| Notes to the text | After capturing IS2, the user can enter comments using the on-screen keyboard. |
| Video recording and format | None |
| Remote control operation | There is |
| Automatic capture (temperature and interval) | There is.按照用户可选的时间间隔捕捉 IS2 或 Jpeg 文件. |
| Battery | |
| Battery（可现场更换、可充电） | 锂离子充电Battery |
| Battery续航时间 | Continuous working time ≥3.5 hours without WiFi (actual battery life depends on Settings and usage) |
| Battery充电时间 | Fully charged in 2.5 hours |
| Battery充电系统 | Ti SBC3B 双槽Battery充电器,或在热像仪中充电.（双槽Battery充电器为选配,不随附提供） |
| Alternating current operation | 通过随附的通用电源适配器使用Alternating current operation,该适配器的输出如下：15 VDC,2 A |
| Power saving function | Users can choose between sleep and shutdown |
| Temperature measurement | |
| Temperature range (not calibrated below -10℃) | -20℃ to 550°C (uncalibrated below -10℃) |
| Precision | ±2 °C or 2 percent (whichever is greater) at ambient temperatures of 25 °C |
| Screen emissivity correction | There is,内置十种常用材料发射率清单 + 0.01 和 1.00 之间的数值调整 |
| The color palette | |
| 标准The color palette | 6 |
| General technical index | |
| Color alarm | None |
| Infrared wavelength | ~8-14μm |
| Operating temperature | -10°c - 50°c(14°f - 122°f |
| Storage temperature | -20°C 至 50°C（-4°F 至 122°F）,不带Battery |
| Relative humidity | 10 % 至 95 % None冷凝 |
| Point temperature | The center point (fixed) |
| User - definable dot tag | There is, 3 个用户可调温度点标记.位置可调.屏幕上会显示标记的温度值.用户可选择为各标记打开/关闭显示. |
| User - defined measurement box | There is,3 个用户可调的矩形.尺寸和位置均可调.屏幕上会显示矩形统计数据：低温度、温度、平均温度.用户可选择为各标记打开/关闭显示. |
| Hard portable case | 带软包的坚固Hard portable case,包括可调式手带 |
| Safety standards | IEC 61010-1: Pollution Level 2 |
| Electromagnetic compatibility | IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A |
| Australian RCM | RCM IEC 61326-1 |
| US FCC | 47 CFR 15 Subsection C 15.207,15.209,15.249 |
| Vibration | 10hz ~ 150hz,0.15 mm,IEC 60068-2-6—— |
| Impact | 30 g,11 ms,IEC 60068-2-27 |
| Drop | 可承受 2 m 的DropImpact |
| Dimensions (height x width x length) | (26.7厘米× 10.1厘米× 14.5厘米)——
(10.5英寸x 4.0英寸x 5.7英寸)—— |
| 重量（含Battery） | ≤2.27 kg (5 lb) |
| Shell protection class | IP54 |
| Warranty period | Two years (standard) |
| The recommended calibration period is | Two years (normal operation and aging assumed) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
| Comply with the RoHS directive | There is |
