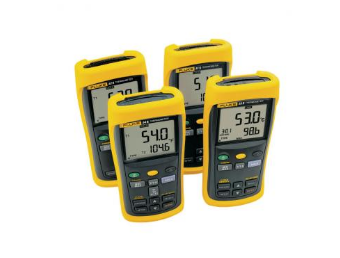

Product specification: Fluke 53-IIB single channel record type contact thermometer
| Technical specification | ||
| Temperature accuracy | Above -100 °C | J,K,T,E, N:±[0.05% 0.3°C]¹— |
| ±[0.05% 0.4°C]¹— | ||
| Below -100 °C | J,K,E, N:±[0.20% 0.3°C]¹— | |
| ±[0.50% 0.3°C] | ||
| Temperature | J type: | -210°c - 1200°c |
| Type K | -200°c - 1372°c | |
| T-shaped | -250°c - 400°c | |
| Type E | -150°c - 1000°c | |
| N-type | -200°c - 1300°c¹ | |
| R and S | 0°c ~ 1767°c¹— | |
| Temperature scale | ITS-90 | |
| Applicable standards | NIST-175 | |
| Disy resolution | 0.1 °C,0.1 K <1000 | |
| 1 °C,1 K ≥ 1000 | ||
| 1. 只有 Fluke 53 II B 和 54 II B 型测温仪可以测量 N、R and S热电偶. | ||
| Environmental indicators | ||
| 工作Temperature | -10°c - 50°c | |
| 存放Temperature | -40°c - 60°c | |
| Humidity (no condensation) | 0% - 90%;0℃- 35℃ | |
| 0% - 70%;0°C- 50°C | ||
| Safety specifications | ||
| Class of overvoltage | CSA C22.2 010.1 1992;EN 61010 1,2— | |
| Institutional certification | CE,CSA, TUV (to be approved) | |
| Mechanical and general specifications | ||
| Dimensions (length x width x height) | 173 x 86 x 38 mm | |
| The weight of | 400 g | |
| Battery | 3 节 AA 型号Battery,典型的Battery寿命为 1000 小时 | |
