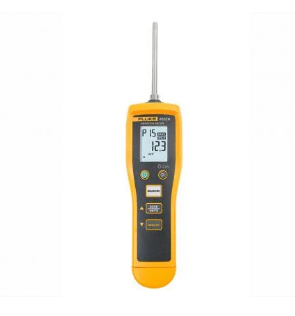

Product specifications: Fluke 802 vibration meter
| Built-in piezoelectric accelerometer | |
| Sensitivity (typical) | 10.00 mV / m/s² ±5% （1 g = 9.8 m/s²） |
| Measure | |
| Acceleration | |
| The range of | 0.1 m/s²- 199.9 m/s² |
| Resolution | 0.1 m/s² |
| Accuracy | ± (5percent 2 digits) (LO: 10 Hz to 1 kHz) |
| ± (10percent 5 digits) (HI: 1 kHz to 10 kHz) | |
| The speed of | |
| The range of | 0.1 mm/s ~ 199.9 mm/s rms |
| Resolution | 0.1 mm/s |
| Accuracy | ± (5percent 2 digits) (10 Hz to 1 kHz) |
| Discement | |
| The scope of | 0.001 mm ~ 1.999 mm ~ (rms 2√2)~ |
| Resolution | 0.001 mm |
| Accuracy | ± (5percent 2 digits) (10 Hz to 1 kHz) |
| 压电Acceleration计 | |
| Typical frequency response | 10赫兹- 15千赫 |
| Unit of amplitude | |
| Acceleration | g, m/s2 |
| The speed of | mm/s |
| Discement | mm |
| Battery type | 2 AAA, NEDA 24A, IEC LR03 |

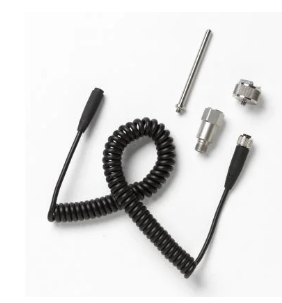

| 外部压电Acceleration计 | |
| Dc bias voltage | 6v dc- 7 V dc |
| Dc bias current | 3.5 mA |
| 注：其他技术指标与Built-in piezoelectric accelerometer的技术指标相同. | |
| Battery life | Measure时间 25 小时 |
| (L × W × H)—— | 24.1 x 7.1 x 5.8 cm |
| Weight: 220 g | 220 g |
| Audio port | Stereo output socket (3.5mm audio plug) |
| External sensor port.M12 Plug | .M12 plug |
| Environment | |
| Operating temperature | -10°c - 50°c |
| Storage temperature | -30°c - 60°c |
| Operating humidity | 30percent to 90percent (non-condensation) |
| Operating height | 2,000 m |
| Storage height | 12,000 m |
| IP level | IP 40 |
| Vibration limitation | 500.0 m/s² Peak value |
| Drop test | 1 m |
| Electromagnetic compatibility | 国际 IEC 61326-1: 便携式,电磁Environment,IEC 61326-2-2
CISPR 11 Group 1, Class A |
| 第 1 组：设备内部产生和/或使用与传导相关的无线电频率能量,该能量对于设备自身的内部功能必不可少. A 类：设备适用于非家庭使用以及未直接连接到为住宅建筑物供电的低电压网络的任意设备中.由于传导干扰和辐射干扰,在其他Environment中可能难以保证Electromagnetic compatibility.此设备连接至测试对象后,产生的发射可能会过 CISPR 11 规定的水平. | |
