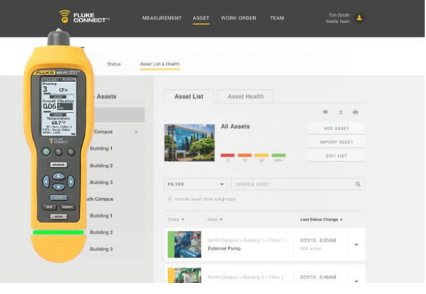

Product specifications: Fluke 805 FC vibration point detector
| Technical index | |
| Low frequency range (pass frequency measurement) | 10hz ~ 1000hz—— |
| High frequency range (CF measurement) | 4000赫兹--- 20000赫兹 |
| Severity level | Good, average, substandard, unacceptable |
| Vibration limit | 50 g peak (100 g maximum peak) |
| A/D conversion | 16-bit |
| Signal-to-noise ratio | 80 dB |
| Sample rate | Low frequency: 20,000 Hz
High frequency: 80,000 Hz |
| Real-time clock backup | Button battery |
| Sensor | |
| Sensitivity | 100 mV g ± 10% |
| Measuring range | 0.01 g--- 50 g |
| Low frequency range (pass frequency measurement) | 10hz ~ 1000hz—— |
| High frequency range | 4000赫兹--- 20000赫兹 |
| Resolution | 0.01 g |
| Precision | Within the range of 100 Hz ± 5percent of the measured value |
| Unit of amplitude | |
| Acceleration | g, m/sec² |
| The speed of | in/s, mm/s |
| Discement | mils, mm |
| Infrared thermometer (temperature measurement) | |
| The range of | -20°c - 200°c(-4°f - 392°f |
| Precision | ±2 °C (4 °F) |
| Focal length | Fixed, about 3.8 cm (1.5 ") |
| 外部Sensor | |
| 注：Fluke 支持但不提供外接Sensor | |
| Frequency range | 10hz ~ 1000hz—— |
| Bias voltage (to power supply) | 20 V to 22 V DC |
| Bias current (to power supply) | The maximum value is 5 mA |
| Firmware | |
| External interface | USB 2.0 (full speed) communication port |
| Data capacity | The database on the built-in flash memory |
| Upgrade | Through the USB jack |
| Memory | Up to 3,500 measurements |
| Radiation | |
| Electrostatic discharge: burst | Standard EN 61000-4-2 |
| Electromagnetic interference | Standard EN 61000-4-3 |
| Radiation | Standard CISPR 11 Grade A |
| Environmental requirements | |
| Operating temperature | -20°c - 50°c(-4°f - 122°f |
| Storage temperature | -30°c - 80°c(-22°f - 176°f |
| Operating humidity | 10percent to 95percent relative humidity (no condensation) |
| Operation/storage height | 3,048 m (10,000 ft) above sea level |
| IP level | IP54 |
| Vibration limit | 500g peak |
| Drop test | 1 meter fall |
| 一般Technical index | |
| Battery type | AA (2 pieces) lithium iron disulfide battery |
| Battery life | 250 measurements |
| Dimensions (length x width x height) | 24.1 cm x 7.1 cm x 5.8 cm
(9.5 in x 2.8 in x 2.3 in) |
| The weight of | 0.40 kg (0.89 lb) |
| Connector | USB mini-B 7 针脚,外接Sensor插孔（SMB 型Connector） |
