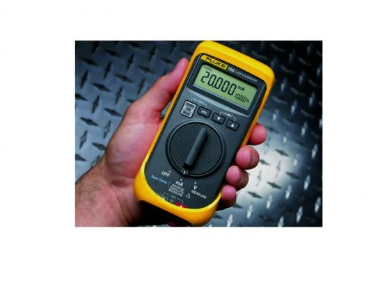

Product specifications: Fluke 705 loop calibrator
| Technical index | ||
| Loop calibrator current measurement | Range : | 0 to 24 mA |
| Resolution : | 0.001 mA | |
| Accuracy : | 0.02percent Reading the 2 most significant bits | |
| Output current | Scope : | 0 to 20 mA or 4 to 20 mA |
| Accuracy : | 0.025percent Reading 2 least significant bits | |
| Driving ability : | 1000 Ω @ 24 mA | |
| Current simulation : | Scope : | 0 to 20 mA or 4 to 20 mA |
| Accuracy : | 0.025percent Reading 2 least significant bits | |
| Extended loop voltage requirements : | 12-30 V | |
| Loop power supply | When measuring mA, 24 V | |
| Loop calibrator voltage measurement | Range : | 0 - 28v dc—— |
| Resolution : | 1 mV | |
| Accuracy : | 0.025percent Reading 2 least significant bits | |
| Environment parameters | ||
| Loop calibrator operating temperature | -10℃- 55℃ | |
| Storage temperature | -40℃- 60℃ | |
| Humidity (no condensation) | 0 - 90%(0℃- 35℃);0 - 70%(35℃- 55℃ | |
| Temperature coefficient | -10 ºC to 18 ºC, 28 ºC to 55 ºC, ±.005percent/ºC | |
| Safety technical parameters | ||
| Security | CSA C22.2 No. 1010.1:1992 | |
| EMC | en50082 - 1:20 92和EN55022:1994 B级 | |
| Maximum voltage | 30 V | |
| Mechanical and general parameters | ||
| Loop calibrator dimensions | 152 x 70 x 41 mm | |
| Loop calibrator weight | 340g | |
| Battery | 一节 9V Battery | |
| Loop calibrator warranty period | Three years | |
| Vibration and vibration | Meet the requirements of MIL-T-28800 for Class 2 equipment | |
| Disys the percentage of current and full scale | There is | |
| Automatic step, automatic ramp | There is | |
| Span check | There is | |
