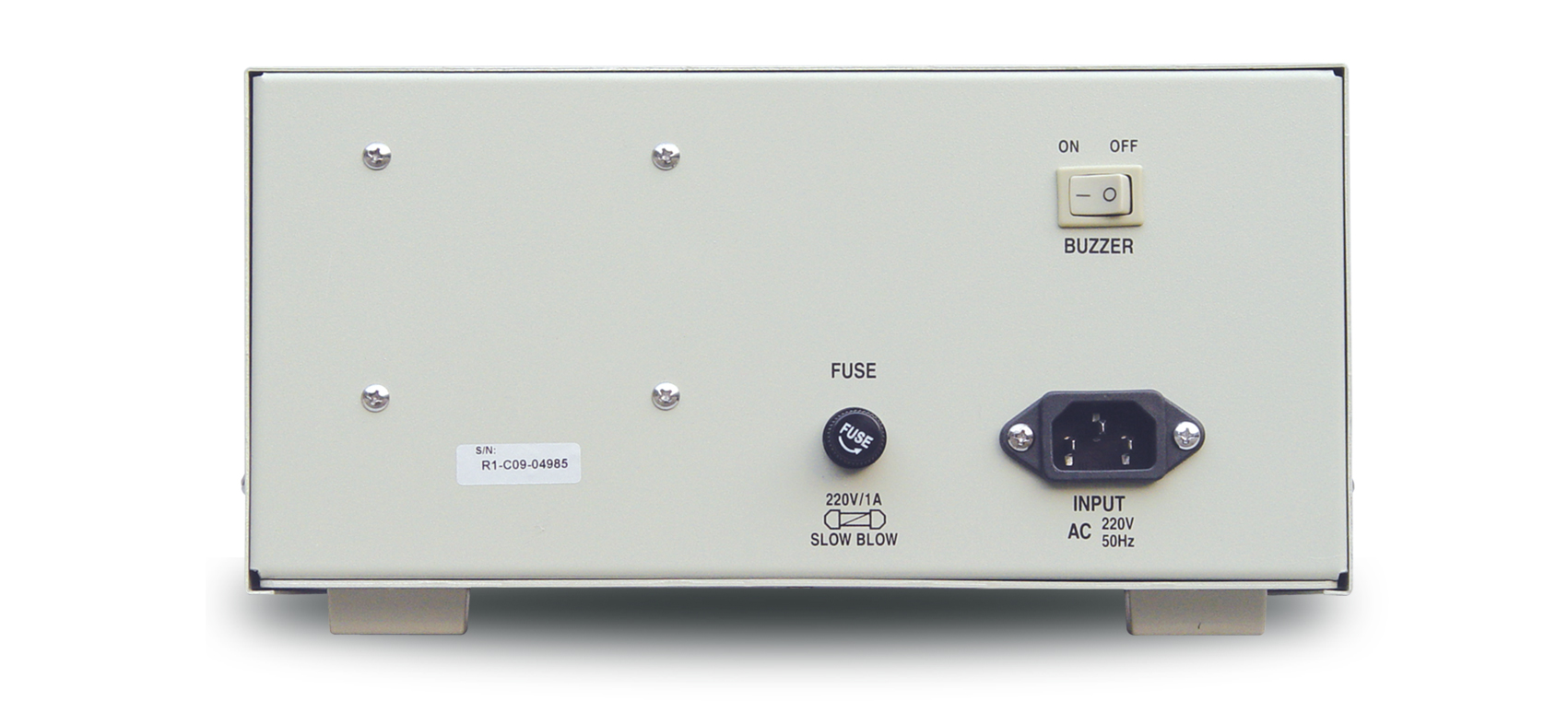

  • TH2681 insulation resistance tester

    Model:TH2681

    Brand:同惠电子1

    Introduction:TH2681 insulation resistance tester is a general, pointer indicator, can meet various electronic components, dielectric materials, whole machine insulation performance test instrument, with fast test speed, good stability, easy to operate, bad discrimination function and so on. Suitable for production line quality assurance, incoming inspection and laboratory measurement requirements.

    • Technical parameters

    • Model number

      TH2681

      Resistance test range

      100kΩ-5TΩ

      Test accuracy

      10% The reading is 0.5 grid

      Test voltage

      10V/25V/50V/100V/250V/500V

      Voltage accuracy

      ±5%

      Measure the current range

      ≤100μA

      Control mode

      Analog circuit

      Trigger mode

      None

      Range mode

      Manual

      Test the speed

      Resistive components: < 0.5 s Capacitive components: 0.5-1.0 s

      Sorting

      Pass, reject and reject ring (can be switched)

      Interface



    • Attachment

    • Standard configuration
      Part name Model number



      Test line at both ends TH26004B



      Optional
      Part name Model number
