Resistance test

Measuring range

100k Ω～10TΩ

Test accuracy

I ＞10nA: ±2% I≤10nA: ±5%

电流测试

Test range

Range: 1:100uA ~ 1mA, input 10kΩ range: 2:10 uA ~ 100 UA, input 10kΩ range: 3:1 ua ~ 10 ua, input 10kΩ range: 4:100 NA ~ 1 ua, input 10kΩ range: For 10nA to 100 NA, the input internal resistance is 1 Mω. The range is 6:1 nA to 10 NA, the input internal resistance is 1 Mω

Test accuracy

±2%+3pA

Test voltage

The scope of

1V ～1000V

Precision

Voltage ≥10V,±1percent; voltage < 10V,±10percent 0.1V

Current limitation

10mA

Switch

Open or close manually on the front panel, or through the built-in timer control or remote control

Charge time

0 ~ 999s, programmable

Measurement delay

0 ~ 999s, programmable

Test the speed

Fast: single measurement time ≤30ms Slow: single measurement time ≤60ms

Comparator function

四档：三档合格,一档不合格

Range mode

Automatic, keep

Memory

Inside the instrument, outside the U disk

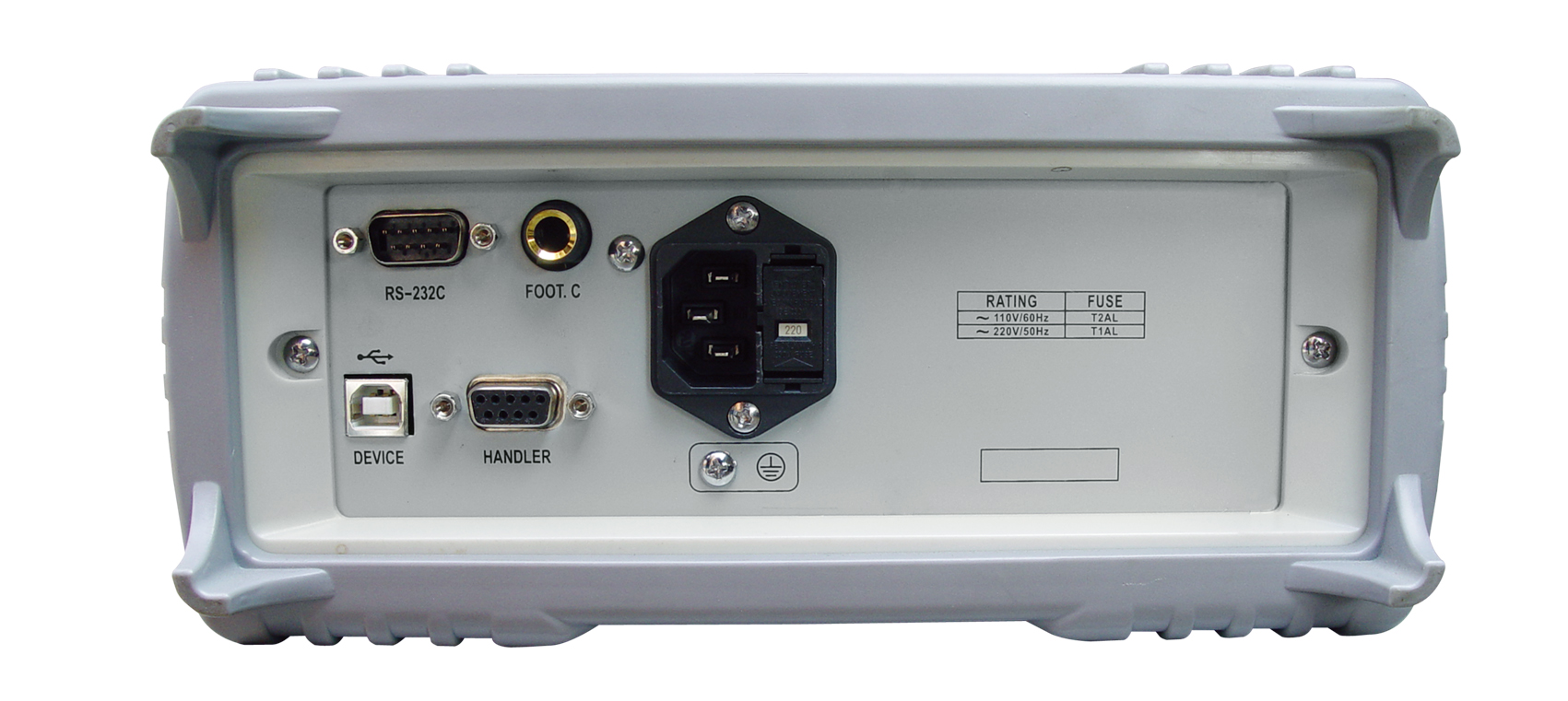

Standard interface

RS232C ,USB HOST,USB DEVICE,HANDLER

一般Technical parameters

Working temperature and humidity

10 ℃～40℃,≤90%RH

Power requirements

90 ~121V AC(60Hz)或198~242V AC(50Hz)——

Power consumption

＜50VA

Volume (mm)

235mmX104mmX360mm( Including coat size)

The weight of

About 3.6kg
