Technical parameters

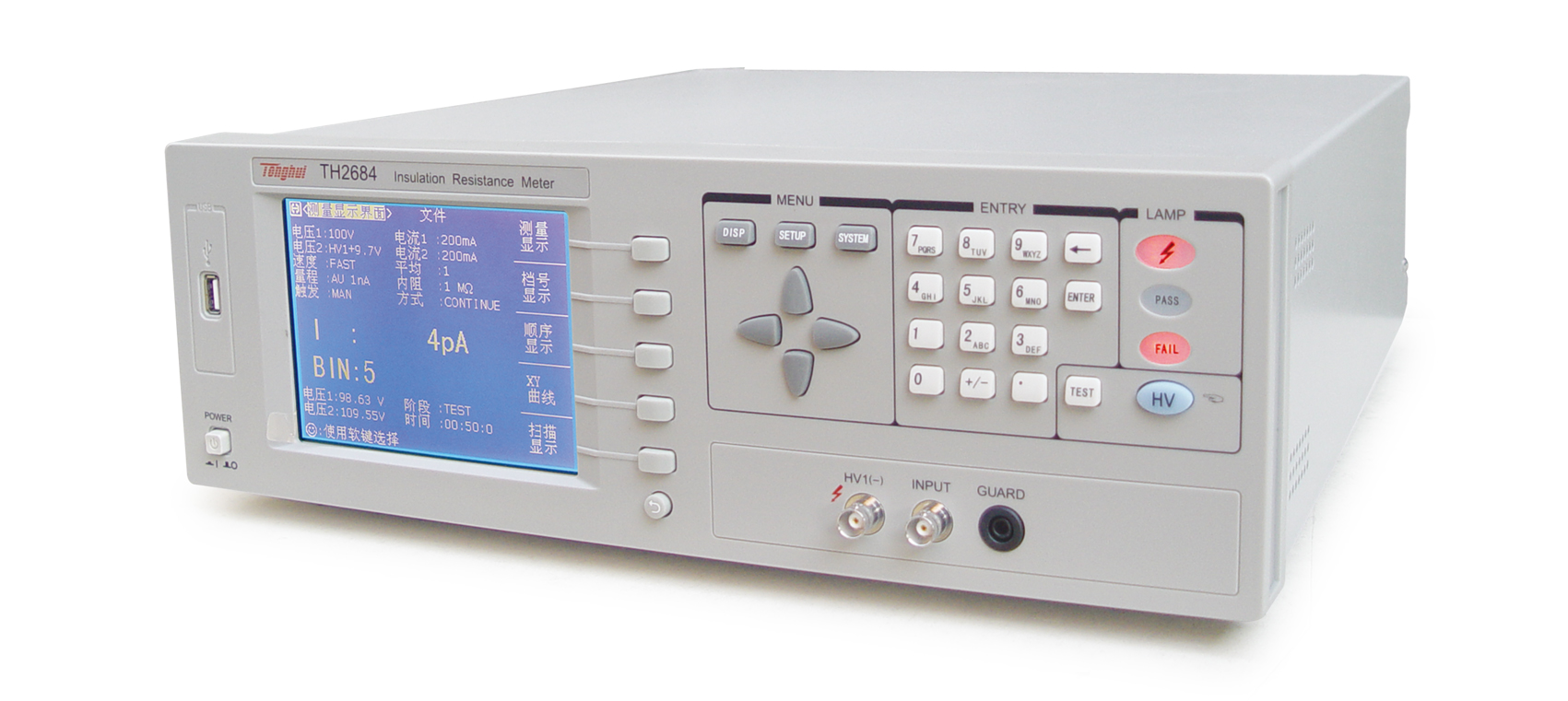

Model number TH2684 Test output
Test voltage range 10-500V,1V step (dual channel) Test the charging current 2mA,25mA,200mA Auxiliary charging voltage 10-500V,1V step Auxiliary charging current 2mA,25mA,200mA Voltage accuracy 2%± 1V Resistance test
Measuring disy range 10 kΩ–50TΩ Test accuracy IR <1T: 2% 电流测试
Measuring disy range 1pA - 1mA Test accuracy 2%± 2pA Range quantity 7 Range operating mode Automatic, keep Response speed < 50ms (range hold) Average number of tests 1 - 100 Continuous test interval < 100ms (range hold) Other

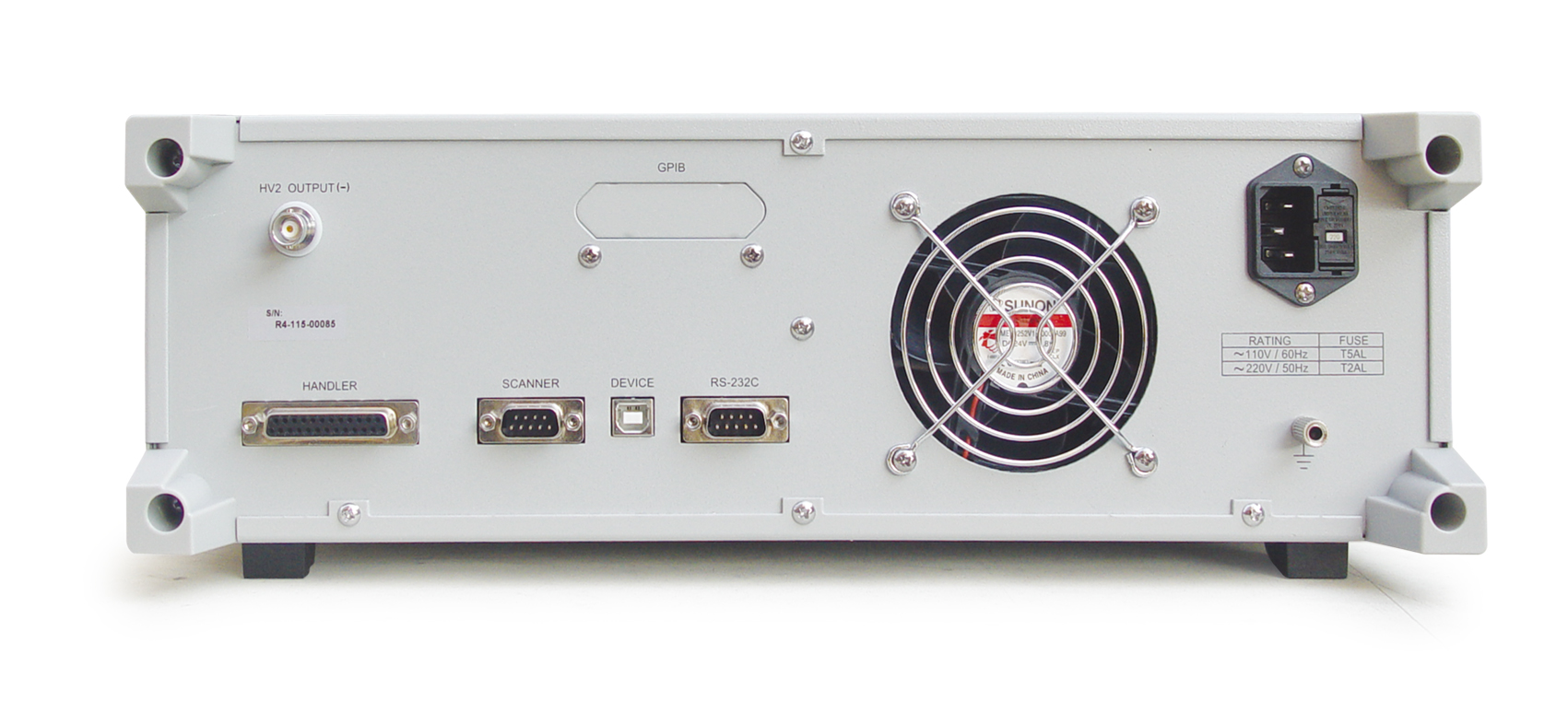

Charge time 0 - 1000s Measurement delay 0 - 1000s Source resistance 200Ω Discharge resistance 2kΩ Working mode Manual, built-in timer, remote control Special test mode R-T、I-T Comparator function 四档：（三档合格,一档不合格） Memory Can save 20 sets of instrument values Standard interface GPIB, (optional) RS232C, HANDLER interface output,USB DEVICE(USB TMC and USB CDC support), USB HOST(FAT16 and FAT32), scanning interface Operating temperature, humidity 10℃-40℃,≤ 90% RH Power requirements 90 - 130 V AC(60Hz) 198 - 260V AC(50HZ) Power consumption 250W Volume (mm) 400(W)×132(H)×430(D) The weight of 14kg Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Test line at both ends | TH26004B |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
